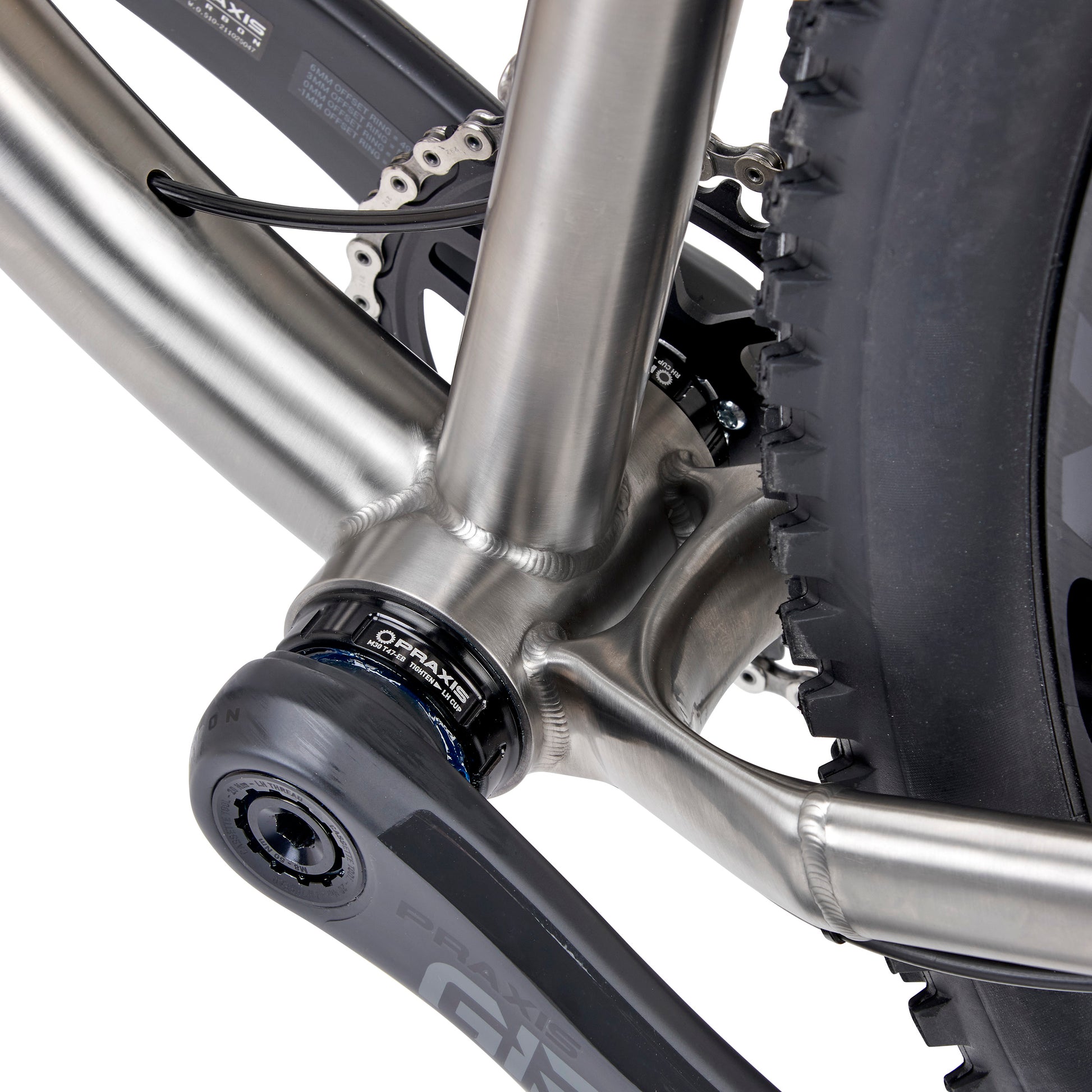

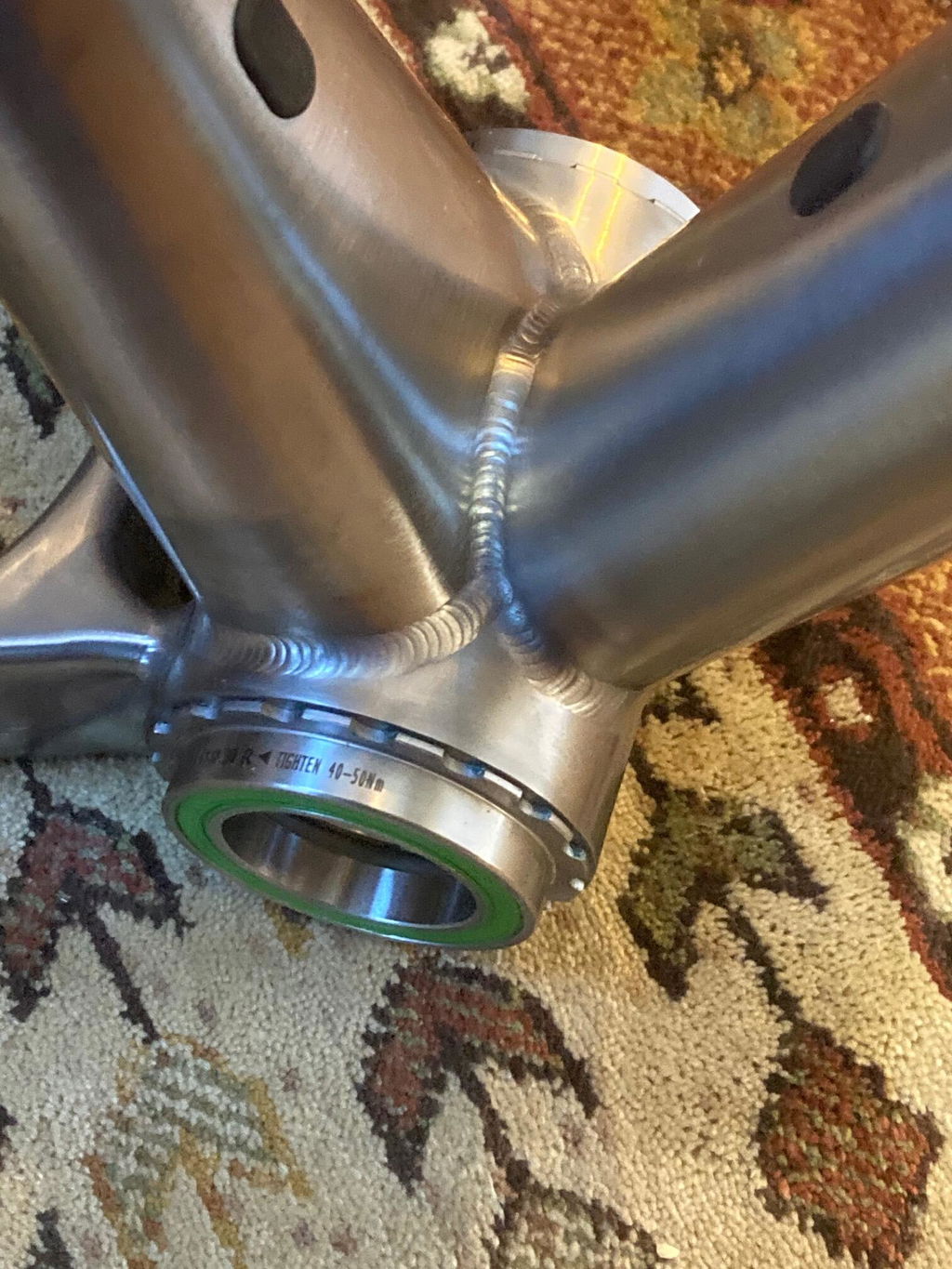

• 3D printed lower yoke beautifully welded to T47 BB
1 9

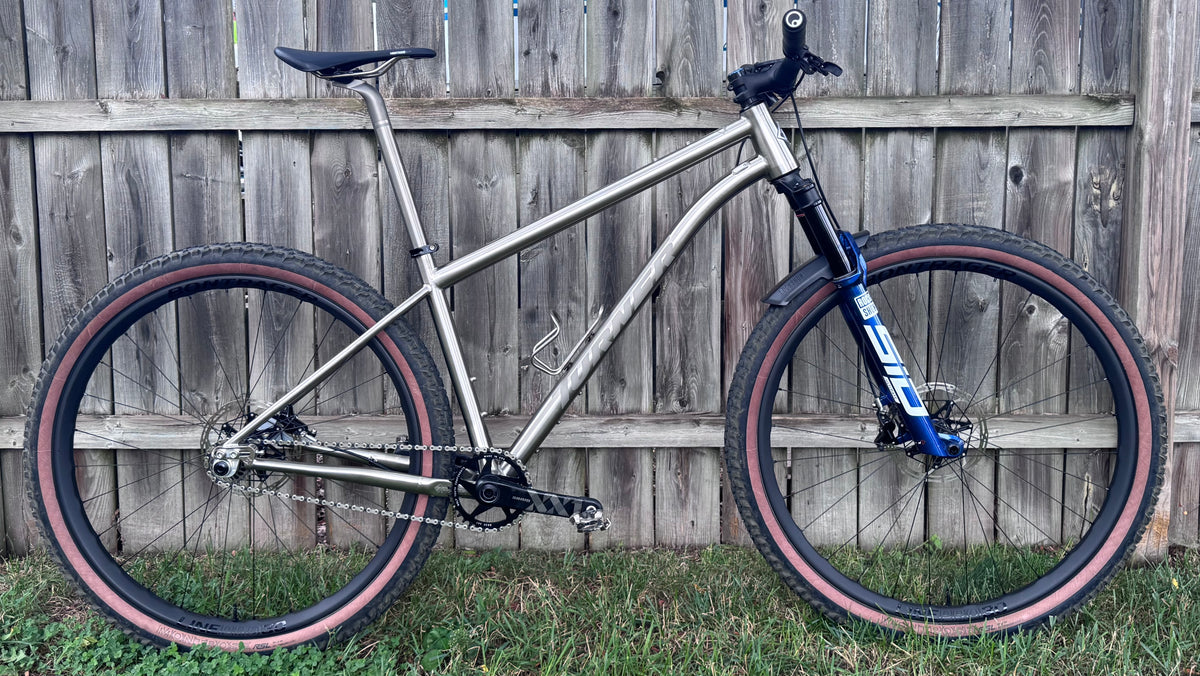

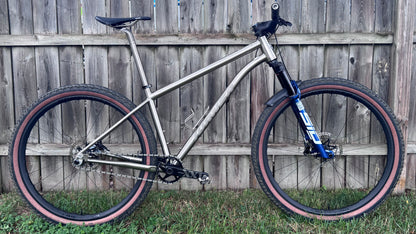

Gila

Gila

$2,700.00 USD
$2,700.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Gila

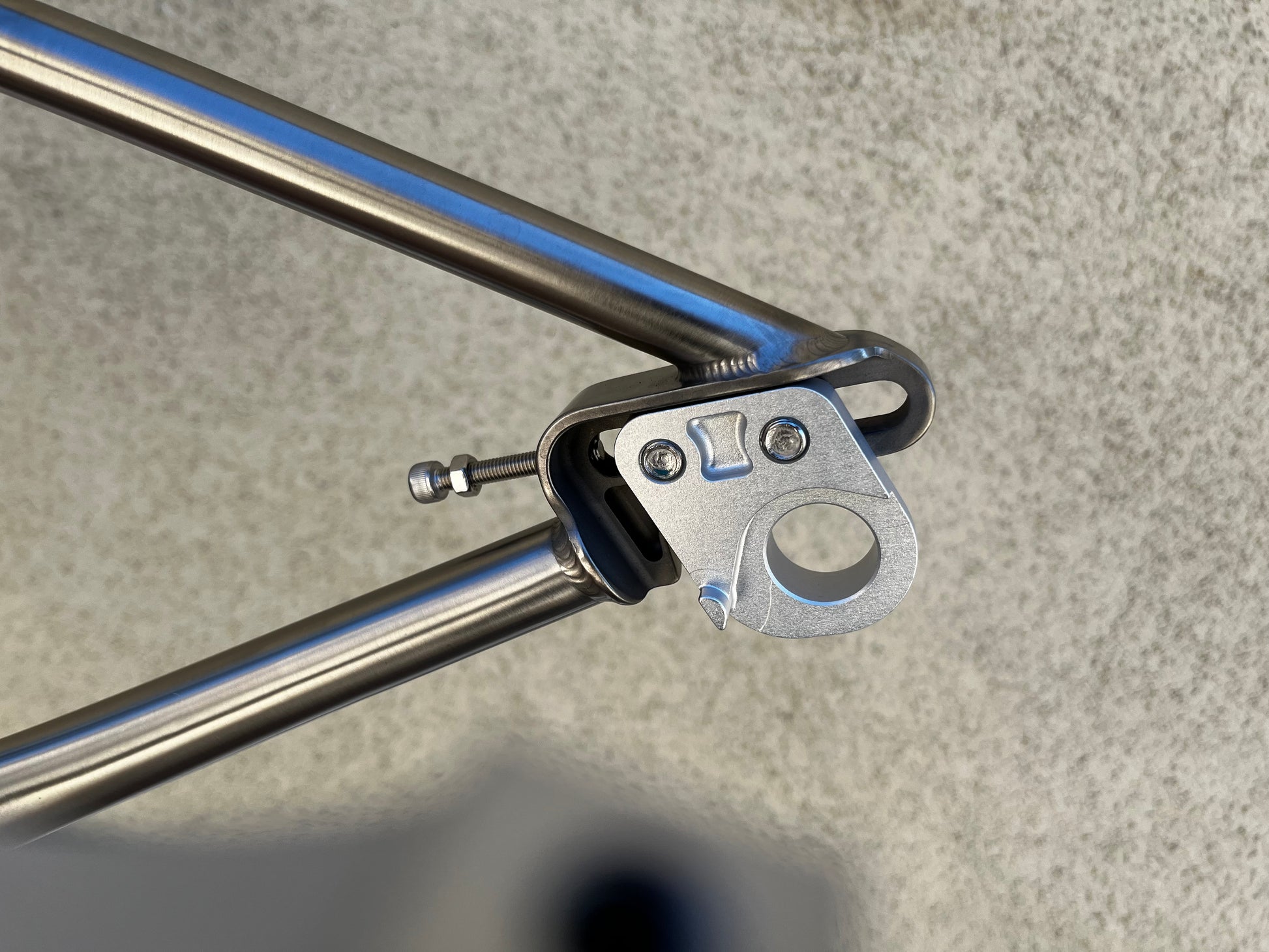

Single Speed compatible sliders, but not SS exclusive!  This super versatile model has stealth mounting points for a rear derailleur cable and the gorgeous sliders are fully compatible with the Universal Derailleur Hanger so, traditional mount or full mount rear derailleurs from Madrone, Ratio,  Shimano, SRAM or Vivo,  old derailleur new derailleur whatever you need to start shifting. And don't forget it has those awesome CNC sliders with 25mm of fore/aft travel to single speed in style.  For the style obsessed, we ship it with a custom machined UDH without the derailleur 'hanger' tab, which looks super clean.

Geometry
S M L XL
rec'd height  < 5'6" 5'6''-5'11'' 5'10''-6'2'' 6'0-6'5"
effective TT 590 620 645 675
seat tube 370 400 430 470
seat tube angle real 76 75.5° 75.5° 75
head tube 85 100 125 155
head-angle 66* 66° 66° 66
bb drop 62 62 60 60
chainstay 425-450 425-450 425-450 425-450
reach 440 460 480 496
stack 608 622 644 670
wheelbase 1148-1173 1175-1200 1205-1230 1233-1258
standover@mid 737 775 805 840
Max post insert 250 285 315 355
{ All specifications are subject to change. Measurements are given in ‘Millimeters’ and ‘Grams’ unless otherwise noted. }

Frame Spec

Seat Post Diameter 30.9mm
Headset Dimensions
ZS 44/56  super common!
BB Shell
T47 Threaded, 73mm wide
 External Bearing BB
Fork Length  120-130  (Geo based on 120 fork)
POST mount rear brake 180 standard mount, 180max
Max Tire Clearance
29'' x 2.8'' or 27.5'' x 2.8''
 With proper clearance
Max Boost chainring size:
  36t oval  38t round  at 55mm chainline


Features

CUSTOM SHAPED TITANIUM TUBESET

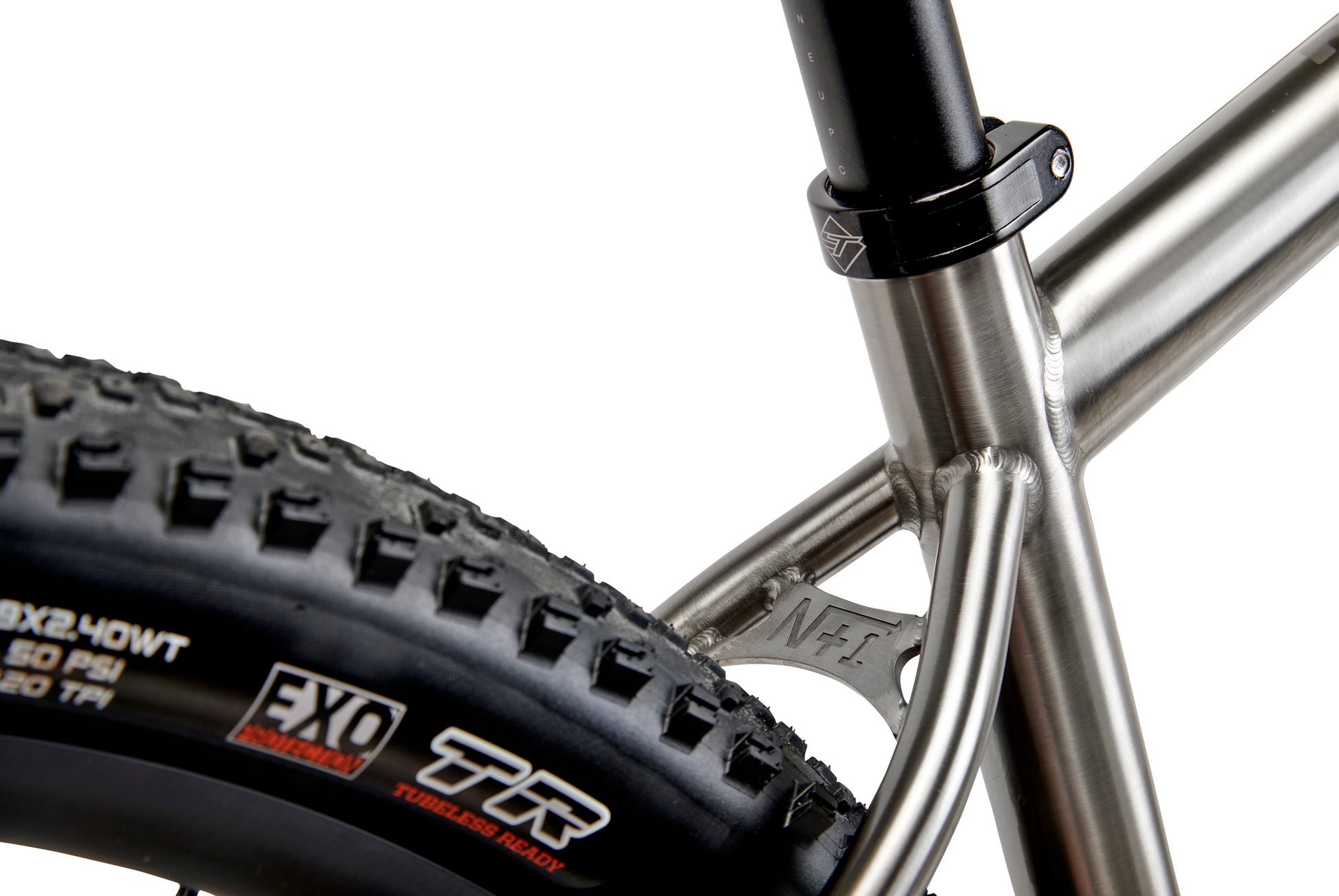

Subtle shaping at the lower end of the Down Tube to the spread load over the BB shell and a dramatically flared Seat Tube both increase lateral rigidity for better feel when smashing the pedals. Along with the custom tapered chainstays, these subtle features set the Turner Ti ahead of the pack when it comes to ride tuning.

DESIGNED IN THE USA

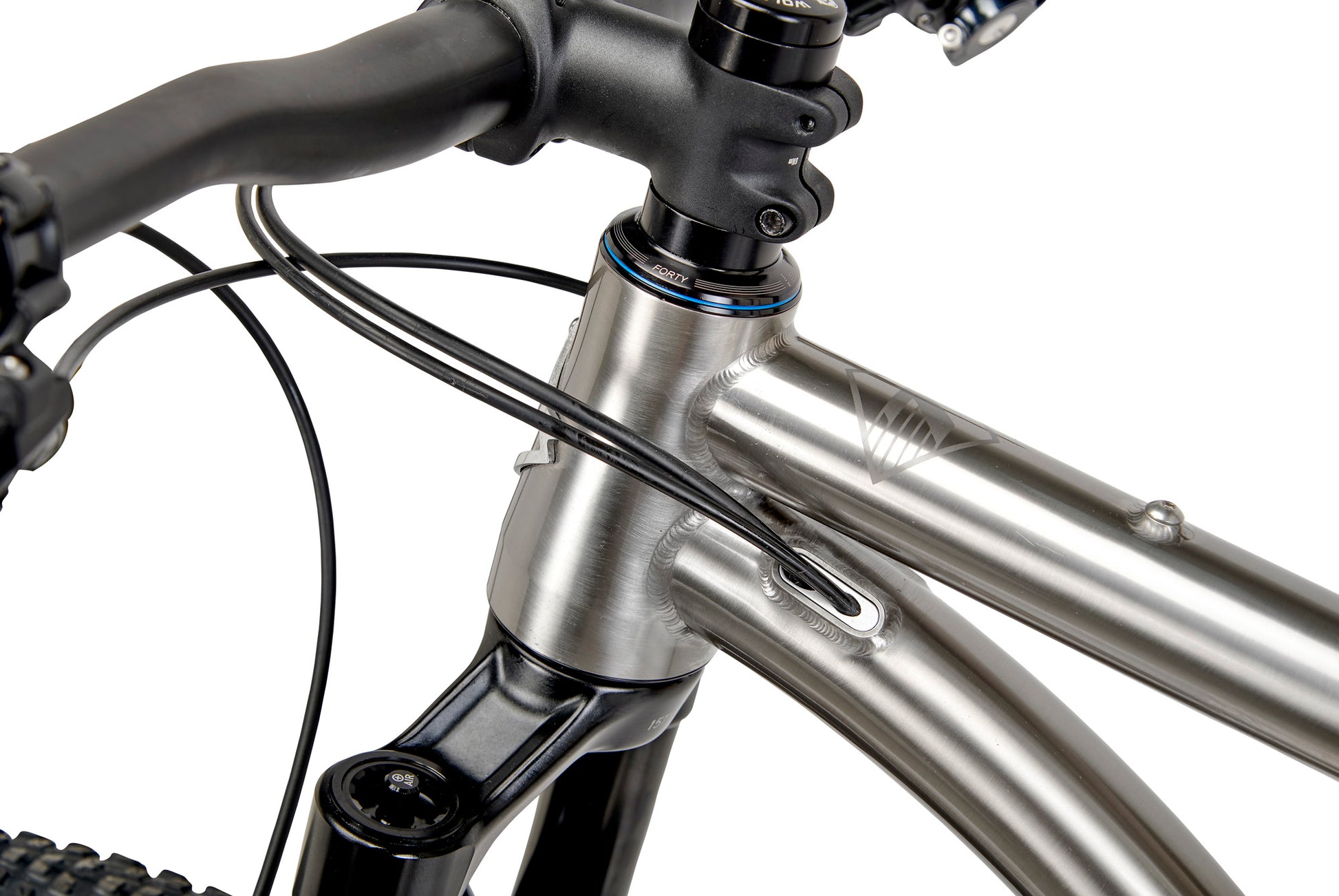

Every aspect of this Turner Ti frame is designed and engineered in the USA. From the gorgeous CNC tapered head tubes to the proprietary slider dropouts, we have designed every aspect of the frame.

As you probably figured out from the great price and long list of standard features, this frame is imported. We found this factory when we were producing the carbon Flux frames years ago. Soon after we started developing the first Ti Cyclosys with them. Our frames are not the first or the only Ti bicycle frames they build, as they are a factory long known for building world-class titanium mountain and road frames. What drew us to this factory was their ability to taper and create butted titanium tubing, and their massive CNC capabilities allowing us to create exactly what we wanted with out cookie cutter head tubes, bottom brackets and dropouts. Even our chainstay bridge is CNC out of billet to be super thin and not create a mud shelf!

T47 BB

‘T’ stands for threaded! Due to popular demand threads are back, and the new T47 offers bigger bearings & longer service life than older threaded standards. It will easily fit the larger and 30mm aluminum spindle creating a stiffer crank assembly, which is up to 18% lighter than the traditional steel spindle system.


Lifetime Warranty

Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase. This warranty does not cover normal wear and tear, nor does it apply to damage that is the result of abuse, improper assembly, poor maintenance, alteration or use other than intended. The costs of disassembly, shipping, reassembly or repair of any attached components are not covered by this warranty and are the responsibility of the original owner.

This warranty is void in its entirety by any modification of the frame, fork, or components. This warranty is expressly limited to the repair or replacement of a defective item, and said repair or replacement is the sole remedy of the warranty. This warranty is offered only to the original owner, and is not transferable. Turner Bicycles Inc is not responsible for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase.


Turner Bikes crash replacement program

Sometimes accidents happen and you may need to replace a non-warranty damaged frame. We know how much you love your Turner Bike and understand the burden of having to replace a non-warranty damaged bike frame or part, Turner Bikes will make replacement parts available at a minimum charge to the original owner. Turner Bikes does this at its sole discretion and reserves the right to refuse this offer.


Our customer service rocks and our bikes ride like no other, but in the end, we want it to fit you.  If you cannot get comfortable on your new Turner Bike within 5 days of receiving it, give us a call and we will work out a solution, you may only need a different stem, or length of seat post. If that won't work, a different size frame can be swapped out.
