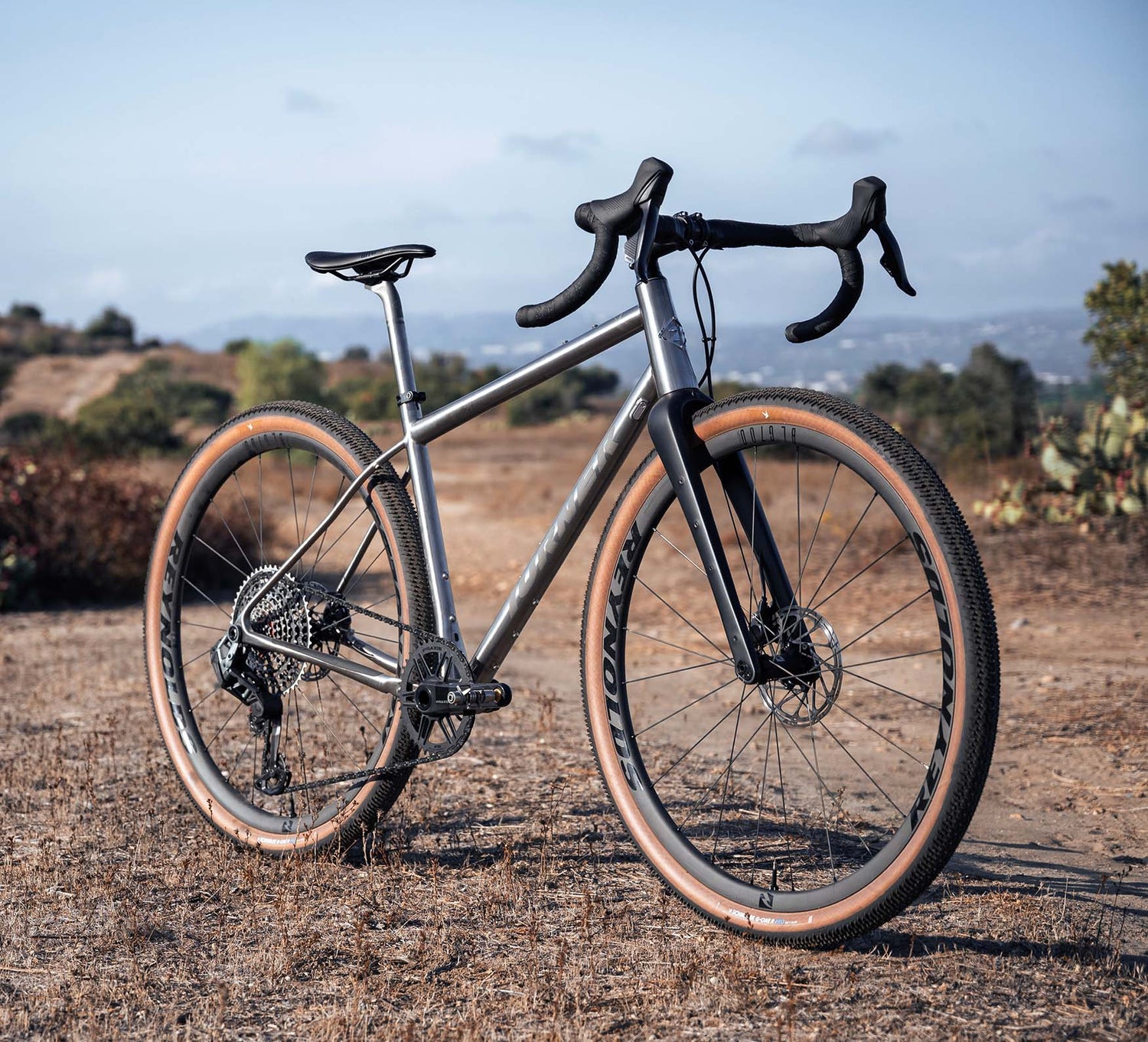

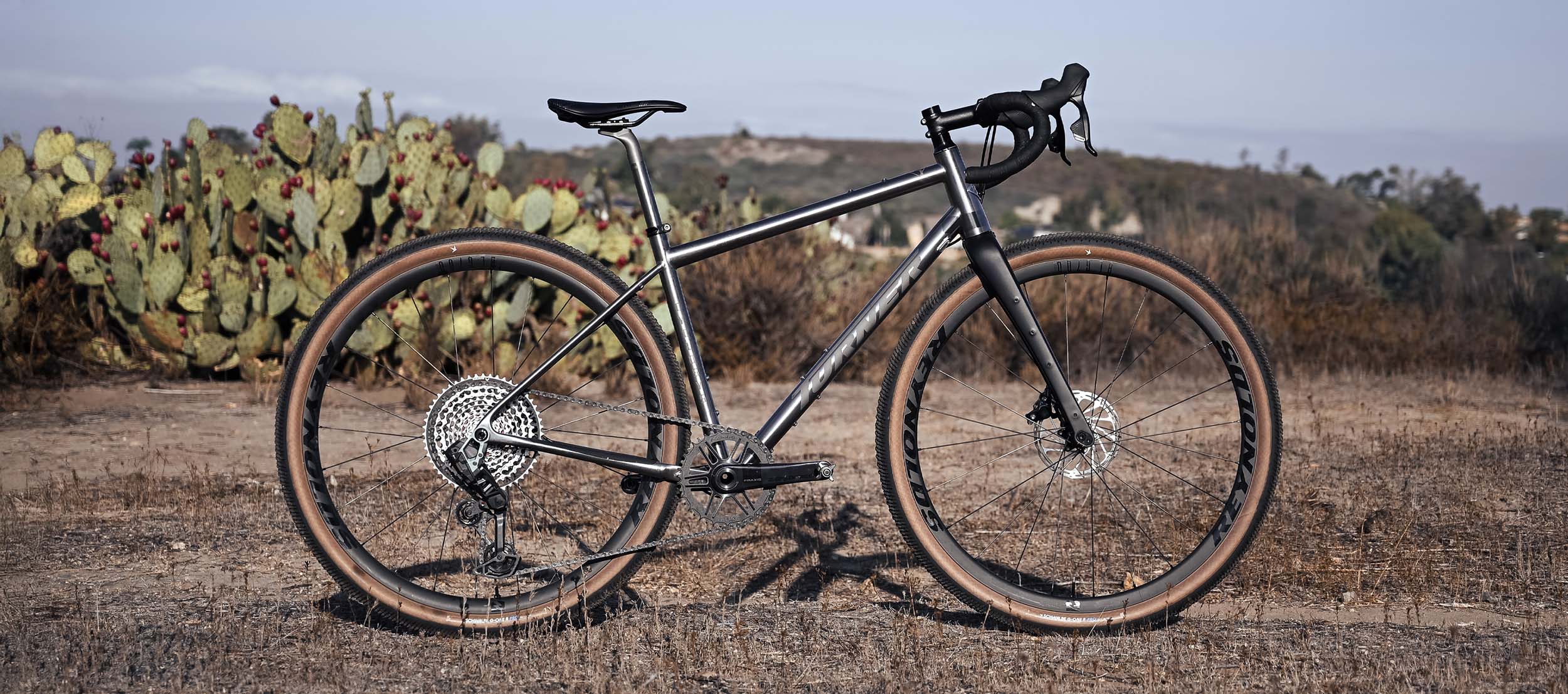

CYCLOSYS TI FRAME-SET
-
CUSTOM TI TUBESET

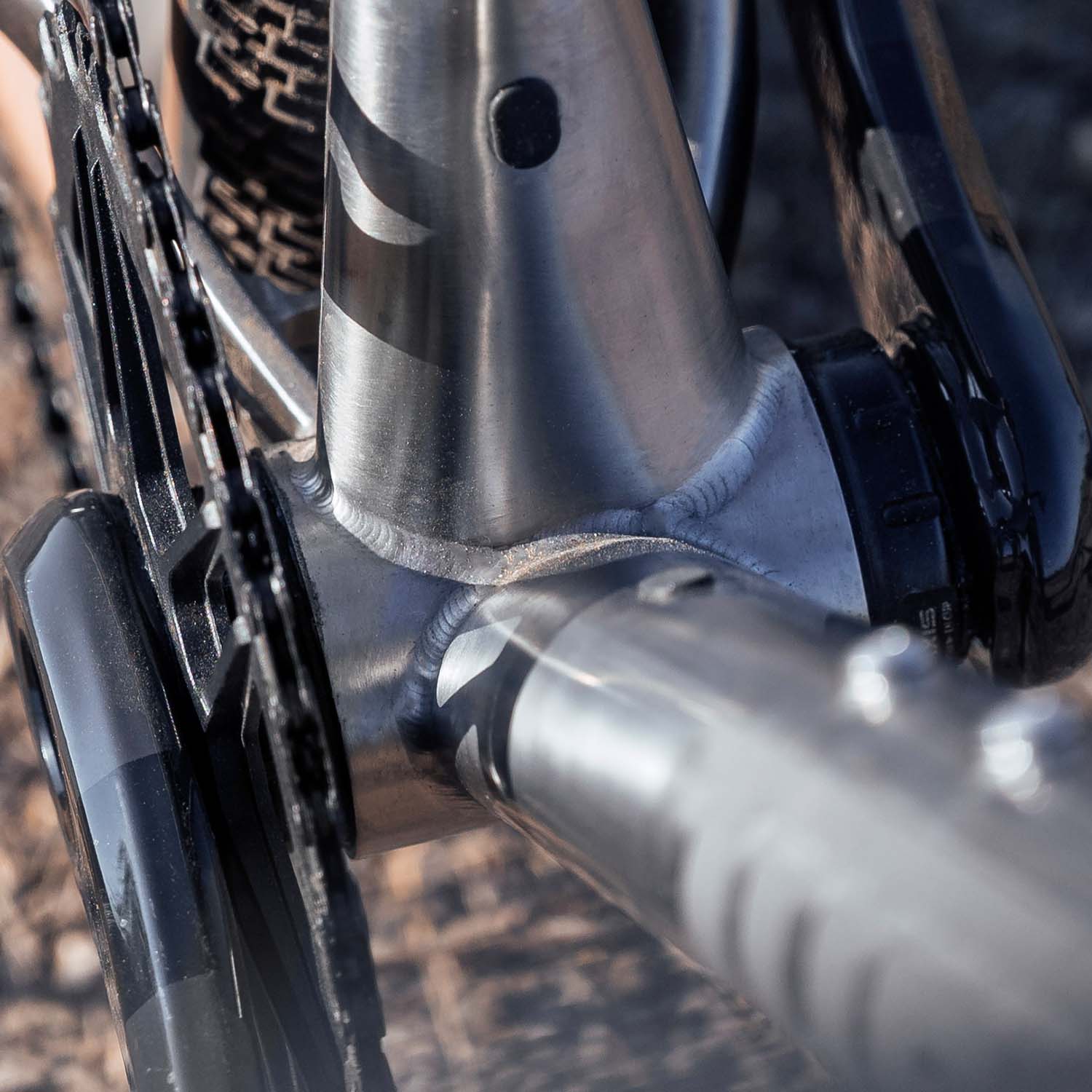

The Cyclosys Ti frame is built from double-butted top, down, and seat tubes paired with single-butted chainstays. The stays taper into a massive bottom bracket junction for maximum stiffness, while the custom-shaped seat tube reinforces power transfer right where it matters most.
-
PRECISION ENGINEERING

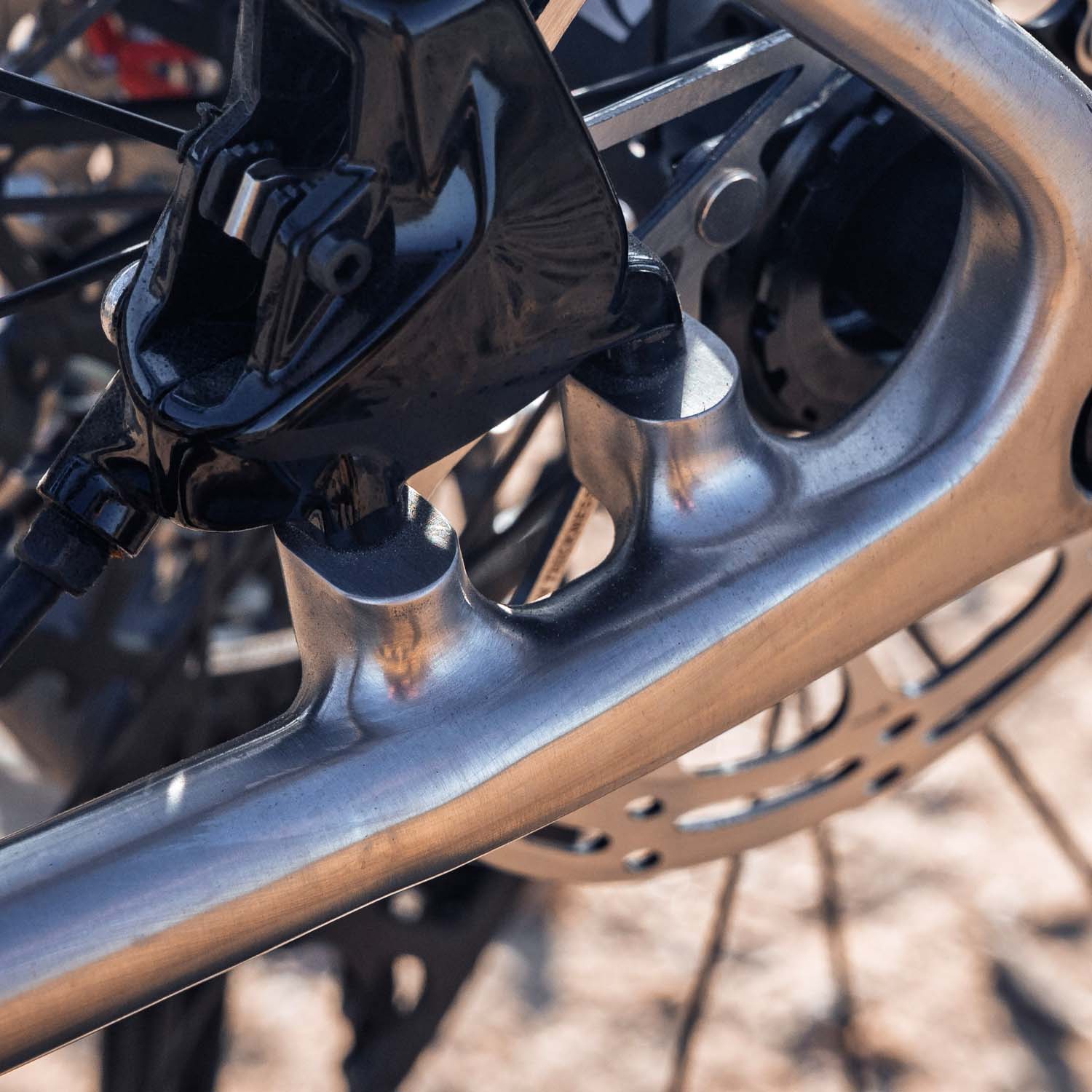

A CNC-machined, size-specific tapered head tube is internally relieved to shed weight without sacrificing strength. The large-junction threaded T47x68mm bottom bracket adds stiffness where you put power down, while 3D-printed dropouts integrate a Universal Derailleur Hanger and 160mm flat-mount caliper bolts.
-
MOUNTING & COMPATIBILITY

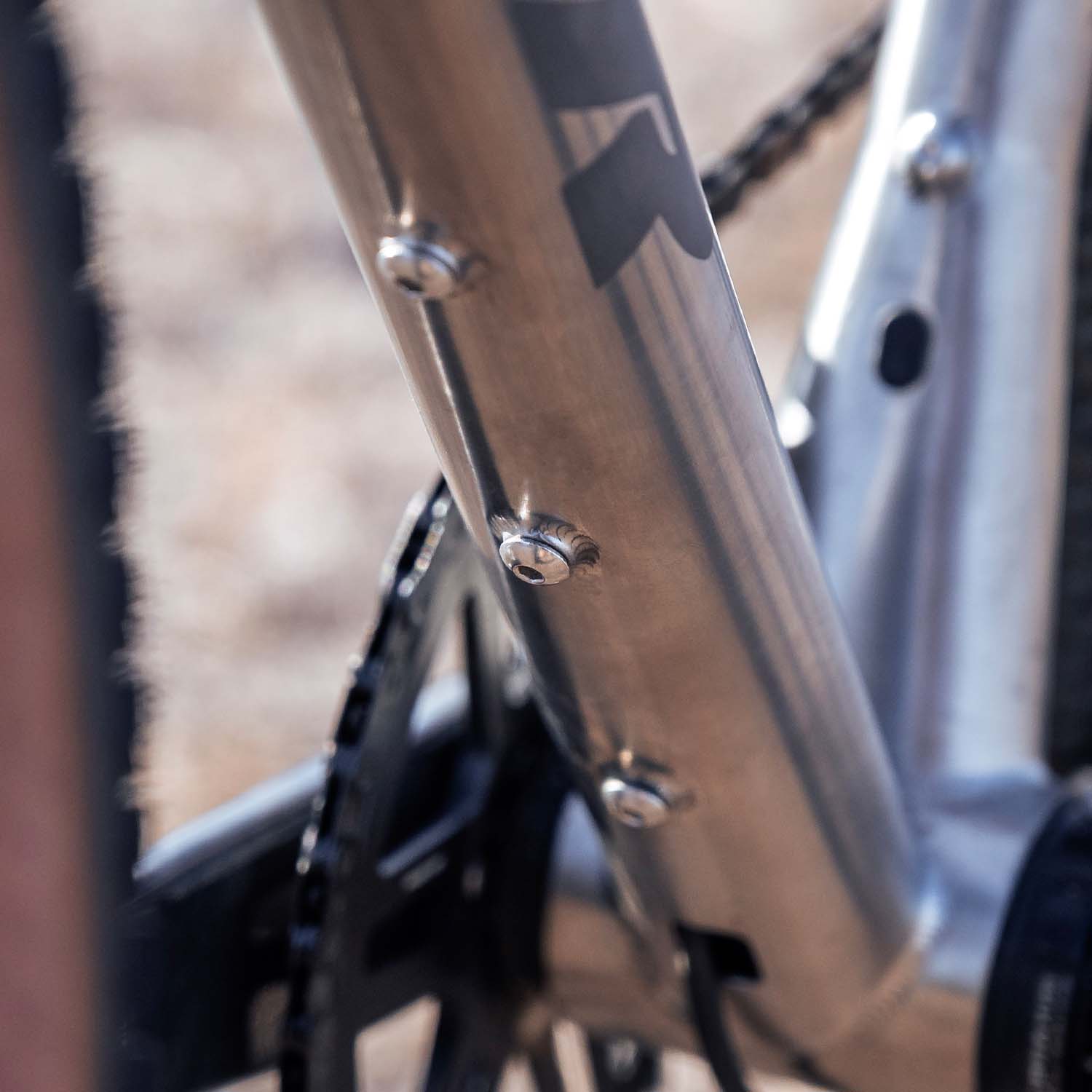

The Cyclosys Ti comes ready for adventure with three welded bottle mounts on the seat tube, down tube, and under-downtube. Secure top-tube bosses make it easy to run a top-tube style bag, while stealth threaded mounts in the rear triangle give you the option for full-coverage fenders without compromising the frame’s clean lines.
-
PREMIUM FINISHING

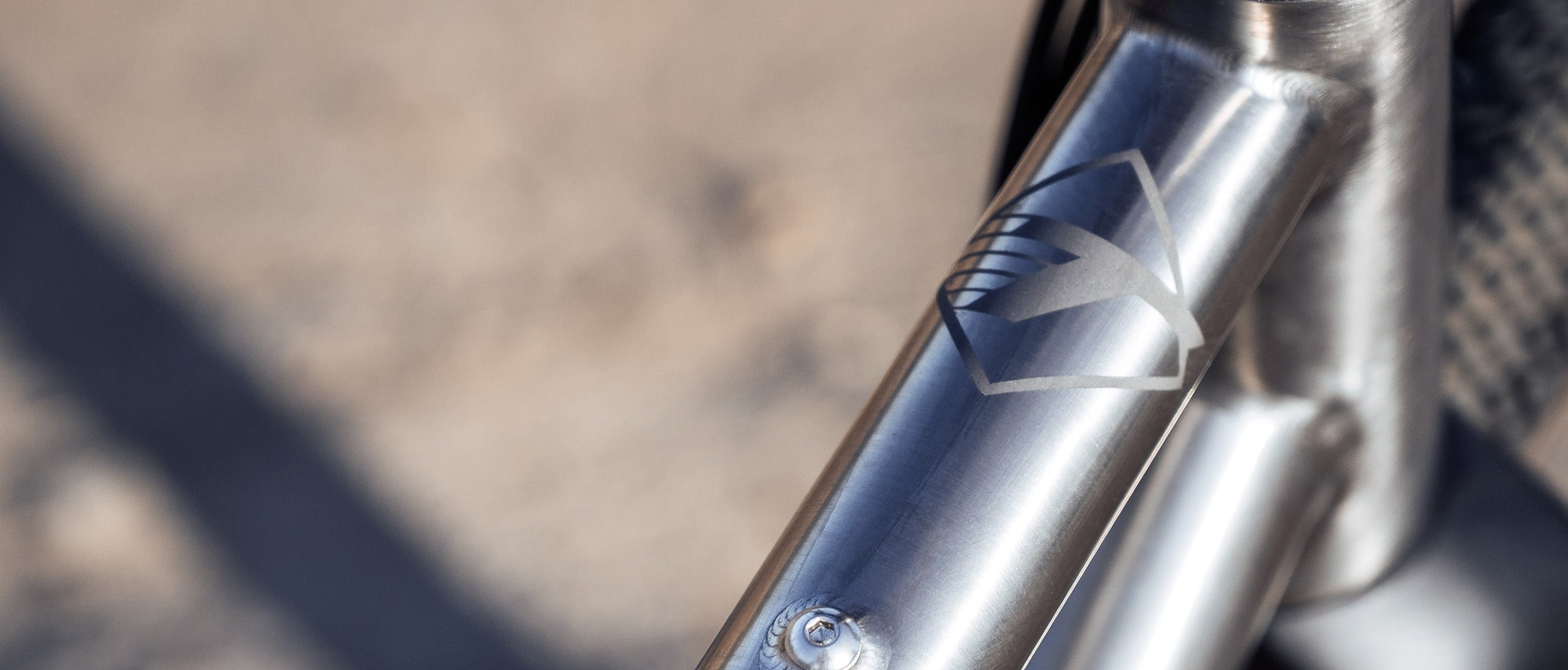

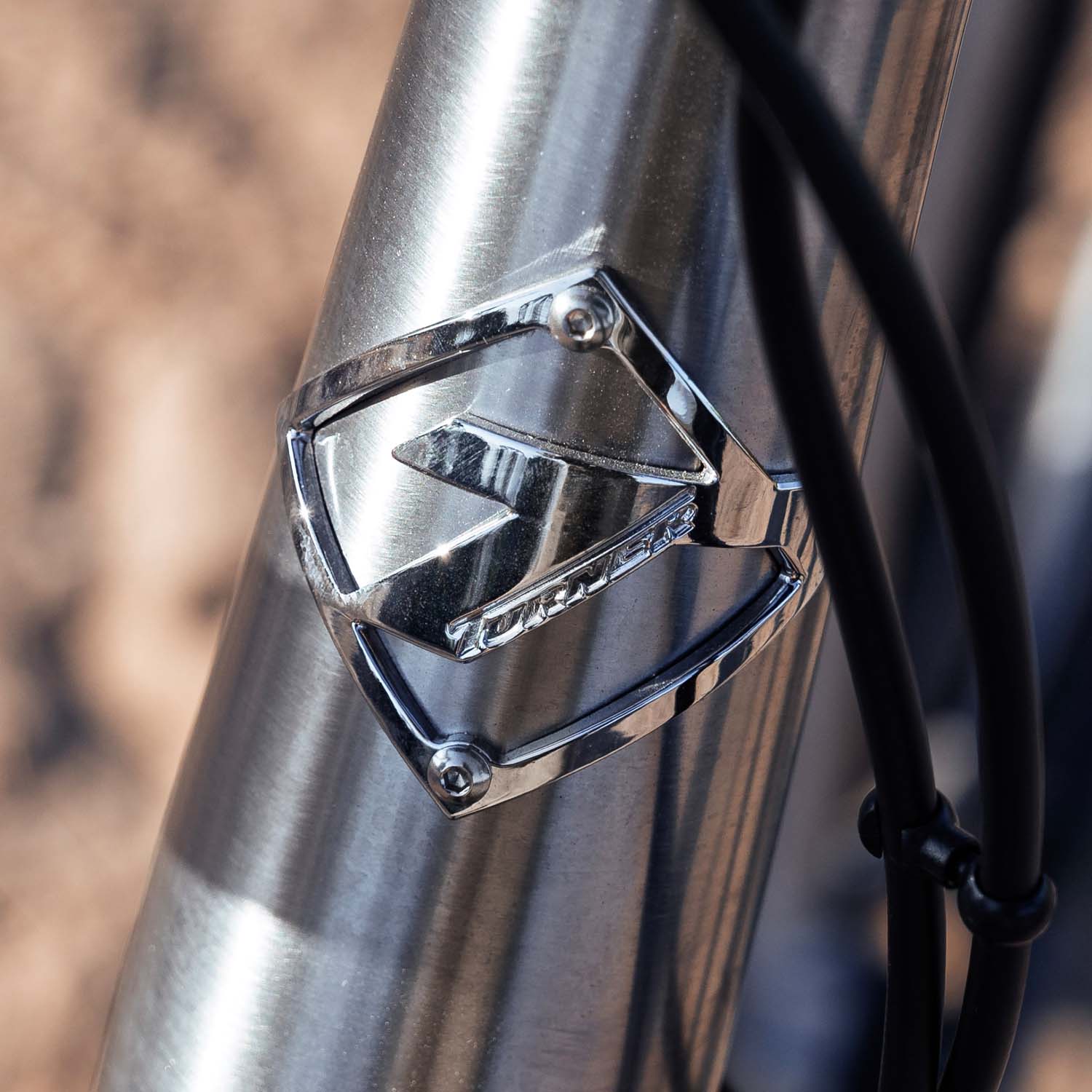

The Cyclosys Ti keeps its look sharp and easy to maintain with a matte-polished finish that can be refreshed anytime with a Scotch-Brite pad. Etched graphics give the frame a long-lasting, corrosion-proof style, while a bolt-on head badge and full stainless hardware complete the build with a clean, durable touch.
STANDARD FEATURES
- ENVE Adventure fork
- Turner logo seatpost clamp
- 7075 thru-axle
- Forged Universal Derailleur Hanger
- Assorted cable-routing hardware
- Clearance for up to 700×55mm tires
BUILT FOR MODERN SPEED
- UDH-Compatible: Ready for SRAM Transmission or any derailleur from the last decade.
- Clean internal routing supports mechanical or electronic shifting, 1x or 2x drivetrains, and even a 27.2 mm dropper with a double chainring setup
- Stealth threaded fender mounts on the rear triangle
- Plenty of bottle mounts and top-tube bosses to go the distance.

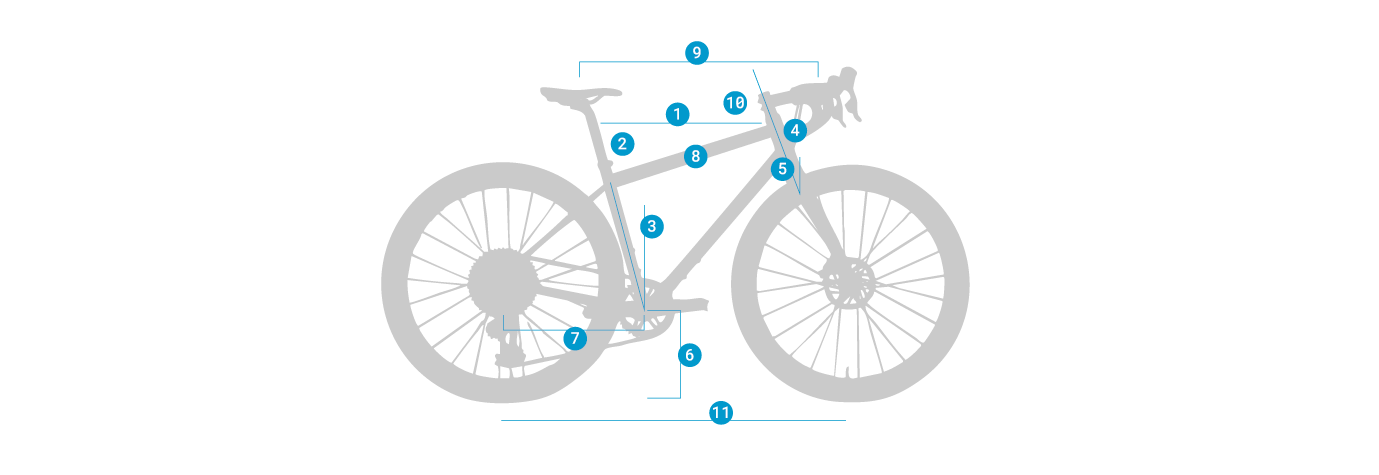

GEOMETRY AND DETAILS
| S | M | L | XL | |
|---|---|---|---|---|
| 1. HORIZONTAL TT | 540mm | 560mm | 680mm | 600mm |
| 2. SEAT TUBE | 430mm | 460mm | 500mm | 540mm |
| 3. SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73.5° |
| 4. HEAD TUBE | 135mm | 160mm | 185mm | 215mm |
| 5. HEAD ANGLE | 70° | 70.5° | 70.5° | 70.5° |
| 6. BB DROP | 75mm | 73mm | 73mm | 70mm |
| 7. CHAINSTAY | 430mm | 430mm | 430mm | 435mm |
| 8. STANDOVER | 752mm | 781mm | 813mm | 833mm |
| 9. REACH | 385mm | 395mm | 400mm | 421mm |
| 10. STACK | 558mm | 581mm | 605mm | 630mm |
| 11. WHEELBASE | 1035mm | 1046mm | 1062mm | 1091mm |
FRAME SPECS
| NOTES | ||
|---|---|---|
| SEAT POST DIAMETER | 27.2mm | for compliance and dropper post variety |
| HEADSET DIMENSIONS | Top: 42mm x 45/45, Bottom: 52mm x 45/35 | |
| BB SHELL | Threaded 47mm x 68mm | Use external bearing BB. |
| REAR HUB | 142 x 12mm | |
| DERAILLEUR CLAMP | 31.8mm | |
| SEATPOST CLAMP DIAMETER | 31.8mm | |
| MAX TIRE CLEARANCE | 29", 2.2" |
Customer Reviews
Me encanto la geometría, muy cómoda y estable. muy buen soporte posventa.
Perfect geo, Perfect compliance on small bumps. I have about 800 miles on my Cyclosys since June and I can't be happier. I mated it with a Rudy 30mm and have been riding a TON of single track on it as well as gravel, and pavement. Absolutely impressive how it eats up small bumps.... super fast in all environments. Most of all it is a Mountain Bikers gravel bike! Thanks Dave!

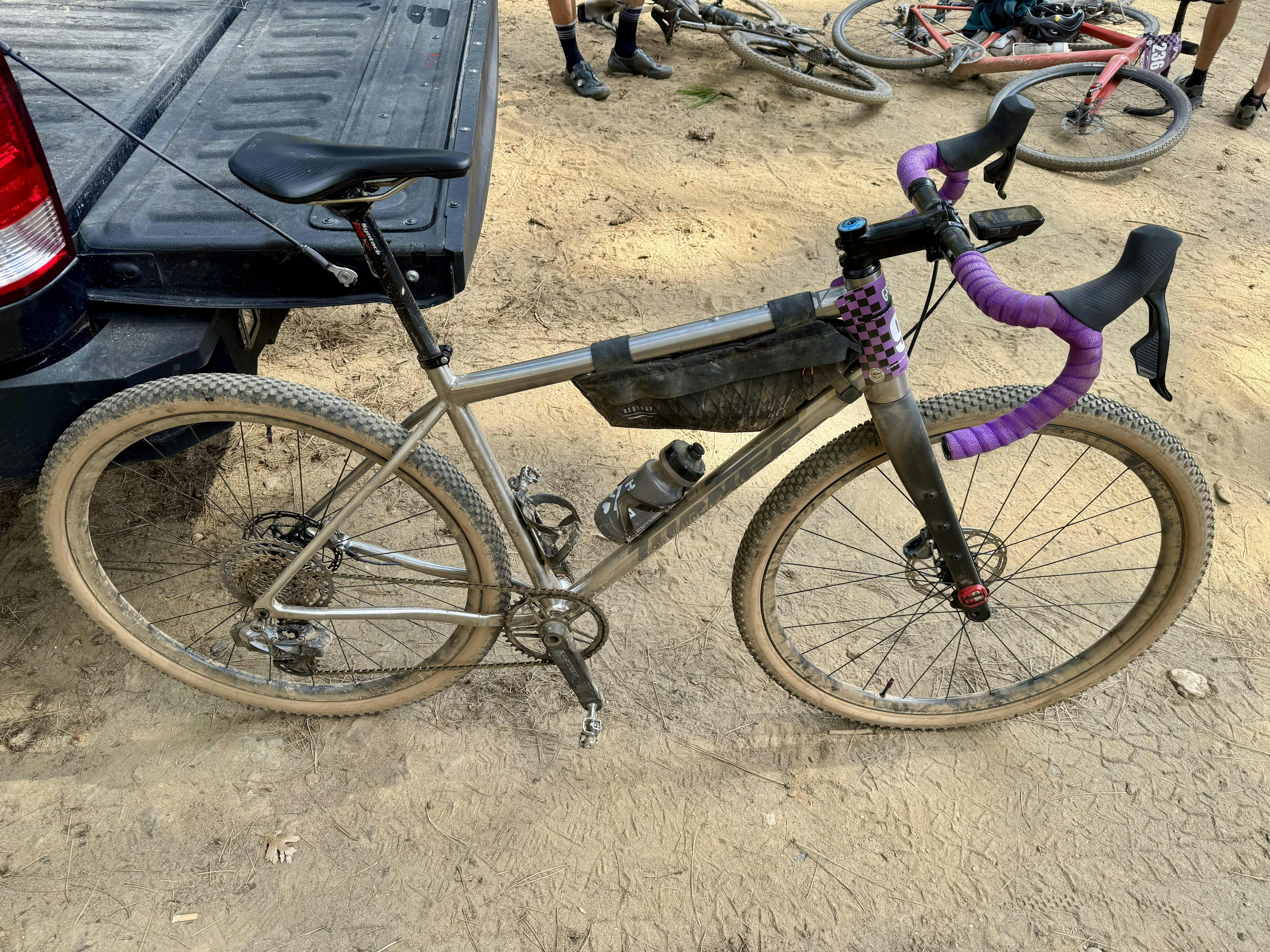

I rode and raced my Turner Cyclosys this past weekend up at Grinduro . . . and I’m impressed! I only have my previous OPEN Up to compare it to (which the OPEN is definitely more closely related to road bike geo). The Turner is what I was looking for - slightly slacker, slightly longer, slightly taller stack. My most fun gravel days are ripping mountain fire roads and searching out flowy singletrack, underbiking a bit. This frame delivered. Stable, but not sluggish. So much fun! Have always been curious about Ti and happy to put more miles on this rig. Dave is an excellent communicator with any question or detail!
