2024 Nitrous Complete Bike
2024 Nitrous Complete Bike
Couldn't load pickup availability
Nitrous
Demo bike, 1 large at this price: Never ridden, just shown at events this year. A little dusty, not quite show room with some minor transport rash, but new and perfect in every way it needs to be.
As great as everyone says the Nitrous is, we could not leave it completely unchanged, so, new for 2024 is a 3D printed chain stay 1/2 yoke, with massive 2.6" tire clearance and room for a 38t round chainring. We also created custom 3D printed cable routing ports that are sleeker and smoother and designed to make it easier to run the internal control lines. There was no change to geometry or tube spec, we would not want to mess with perfection!
The Nitrous has UDH, which allows you to use the newest SRAM 'Transmission' rear derailleur. And each frame is shipped with a Universal Derailleur Hanger so any derailleur from the last 4 decades can be installed and with the multiport cable routing options you can choose electric or mechanical shifting and internally routed dropper post.
Why was the Nitrous created? For fast cross country type rides, but with a fully modern geometry. There is no reason that a XC / light trail bike designed to really be pedaled in anger should have angles from 20 years ago, of course longer, lower, slacker works better than the old geometry on light bikes too!
Why a hard tail?? For many of us, there is a ton of riding that does not require a full suspension bike, and with trail sanitation happening daily, more and more trails are becoming more fun on a hardtail!
Geometry
| S | M | L | XL | |
| rec'd height | 5'1"-5'6'' | 5'6''-5'10'' | 5'10''-6'2'' | 6'2''-6'6'' |
| effective TT | 585 | 615 | 640 | 670 |
| seat tube | 370 | 400 | 430 | 470 |
| seat tube angle real | 75° | 74.5° | 74.5° | 74° |
| head tube | 85 | 100 | 125 | 155 |
| head-angle | 66° | 66° | 66° | 66° |
| bb drop | 62 | 62 | 60 | 60 |
| chainstay | 435 | 435 | 440 | 445 |
| reach | 420 | 443 | 462 | 478 |
| stack | 610 | 623 | 644 | 672 |
| wheelbase | 1140 | 1166 | 1200 | 1233 |
| standover@mid | 760 | 775 | 805 | 835 |
| Max post insert | 250 | 210 | 240 | 280 |
| { All specifications are subject to change. Measurements are given in ‘Millimeters’ and ‘Grams’ unless otherwise noted. } | ||||
Frame Spec
Frame Spec
| Seat Post Diameter | 30.9mm | |
| Headset Dimensions |
ZS 44/56 semi integrated
|
|
| BB Shell |
T47 Threaded
|
|
| Fork Length | 120-140max | (Geo based on 120 fork) |
| POST mount rear brake | 180 max | |
| Max Tire Clearance |
29'' x 2.5'' or 27.5'' x 2.8''
|
With full clearance |
|
Max Boost chainring size:
|
36t oval 38t round |
SRAM GX 'Transmission' Build Kit
*Parts subject to change based on availability
| Fork | Manitou Mattoc Limited Edition 120mm 3 position compression on fork |
| drivetrain | SRAM GX 10-52, XO chain for long life |

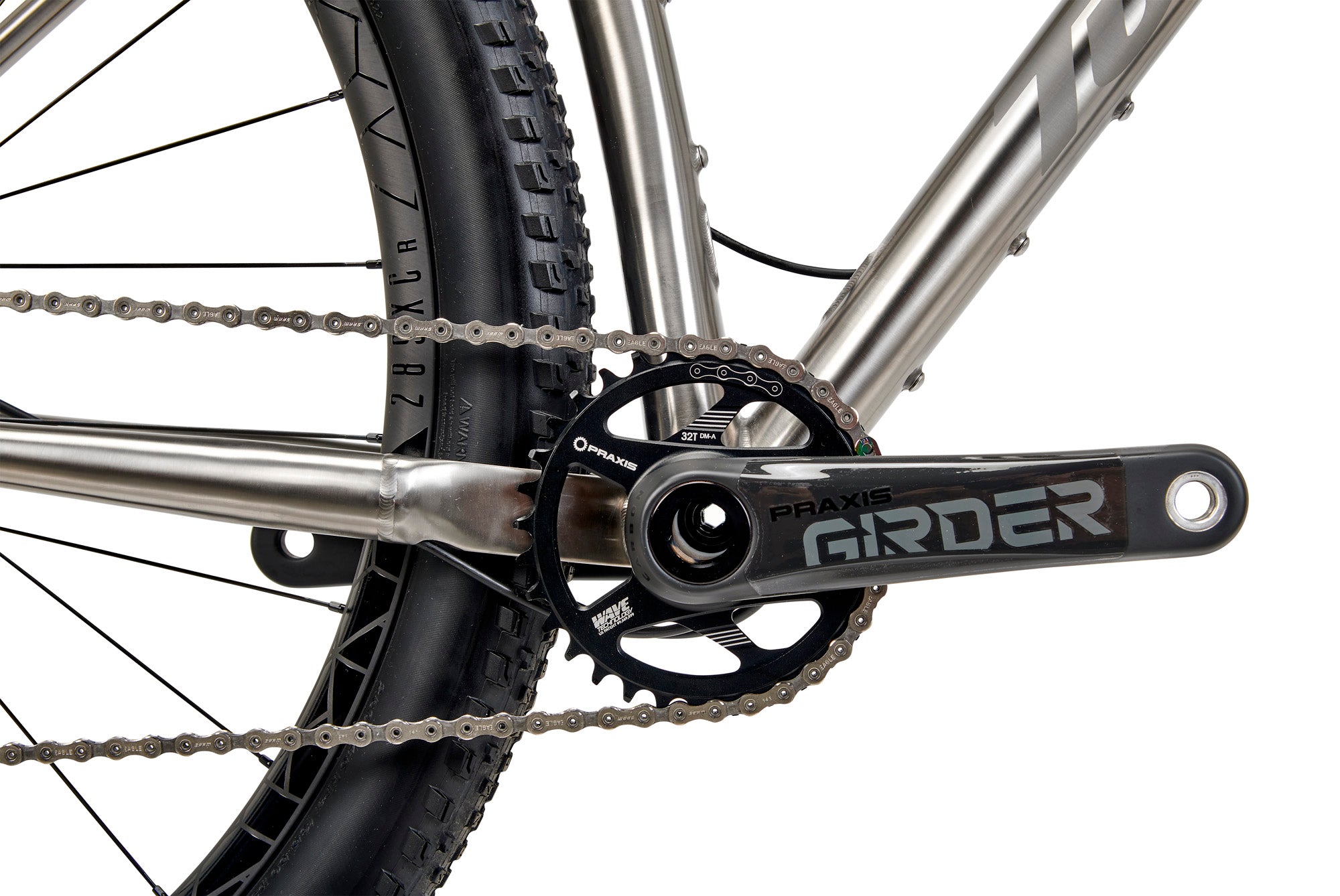

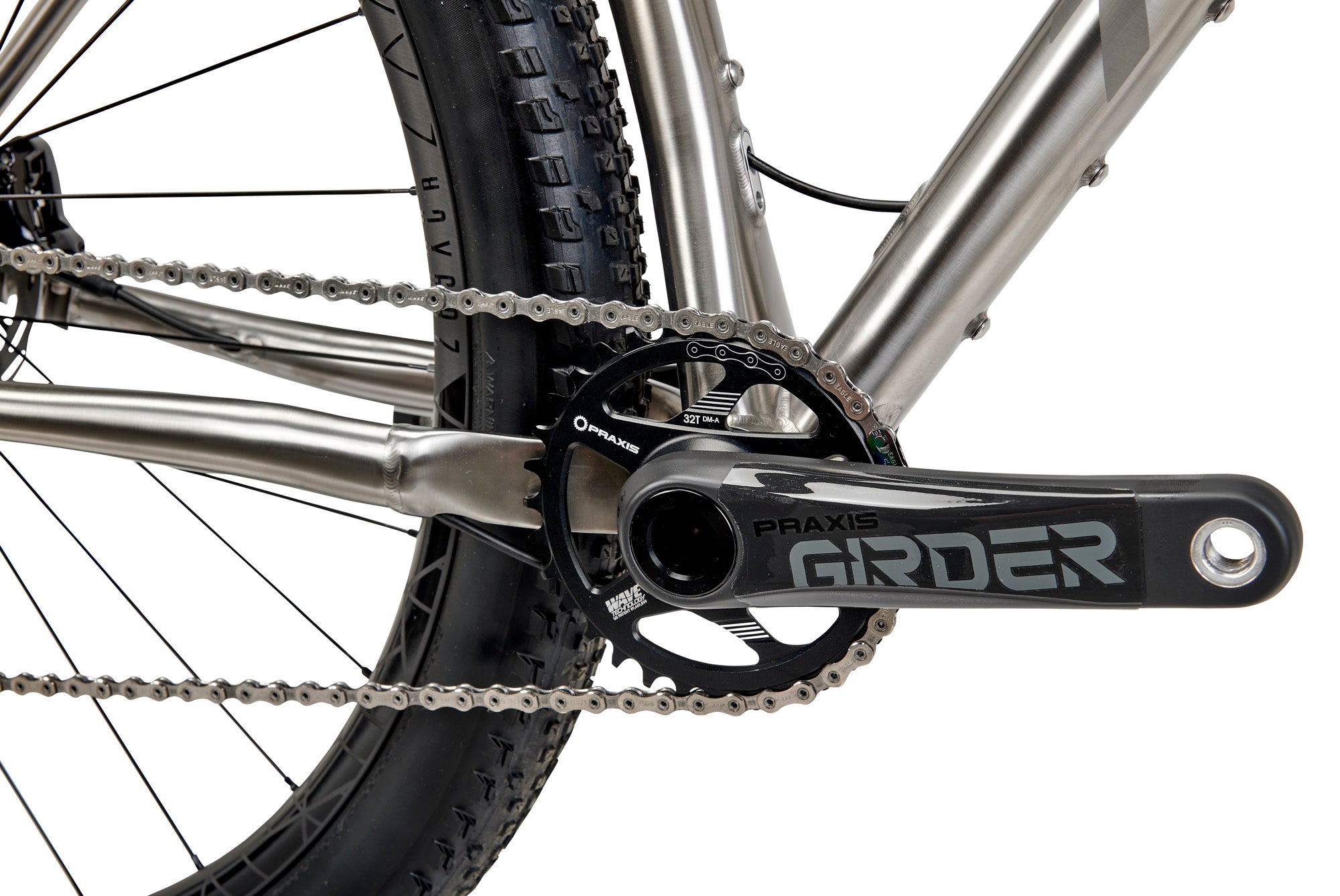

| crankset | Praxis Girder XC, carbon, 175, 32t |
| brakes | SRAM Level Silver stealth, 4 Pistons, 180 ft 180 rr |
| wheelset | Reynolds 289/309 Black Label Expert, carbon rims, butted spokes |
| tires | Maxxis Rekon, 3T,EXO, tubeless ready, 29x2.4WT |
| sealant | Orange Seal Endurance |
| headset | Cane Creek 40 Series, 44/56 semi integrated, ZS top and bottom. |
| handlebar | Whisky No 9 carbon, 25mm rise |
| stem | Whisky No 7 MTN 50mm |
| seatpost | One UP dropper 210mm |
| saddle | WTB Volt |
| grips | ODI Reflex 2.1 lock on with custom Turner laser etched clamps |
Features

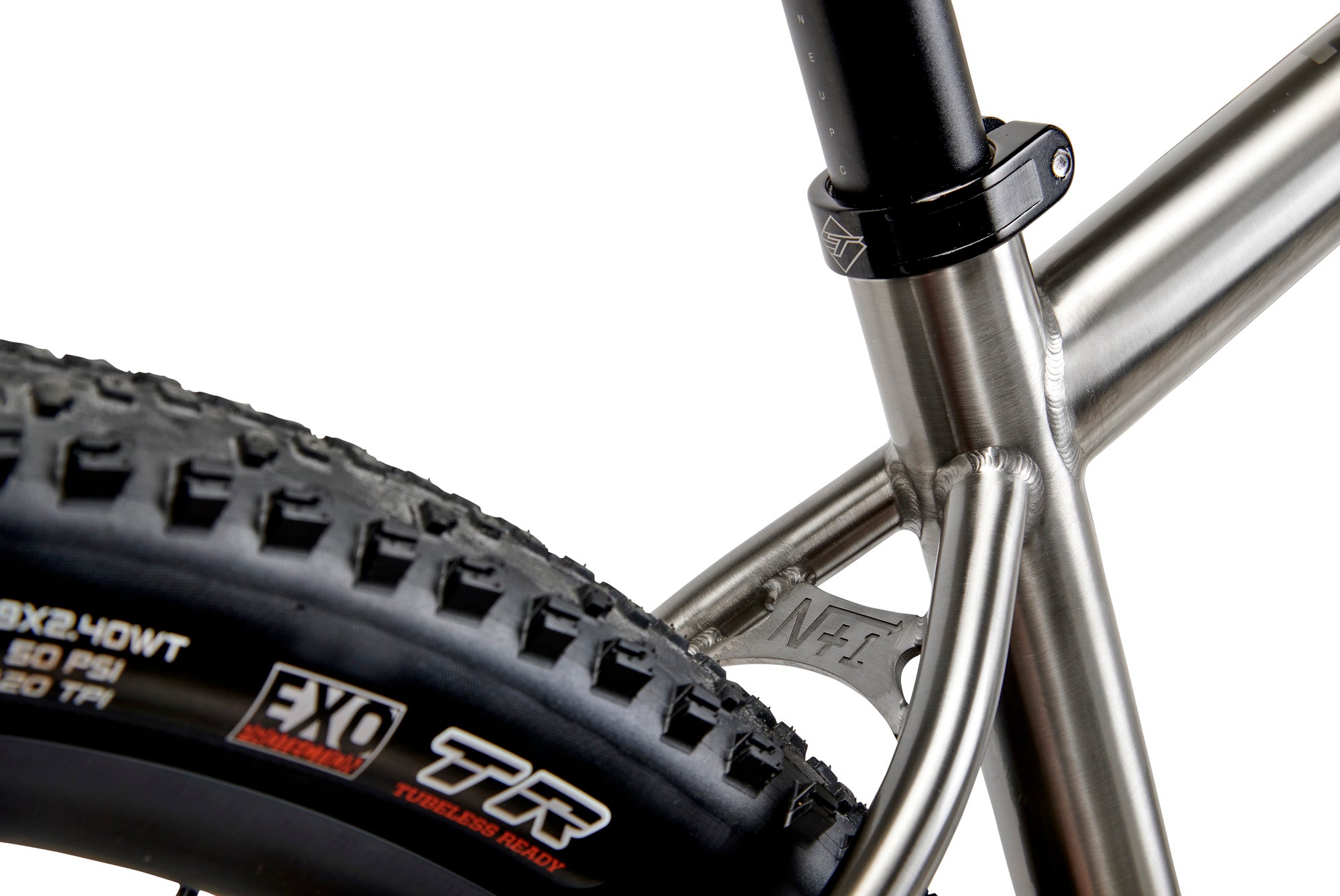

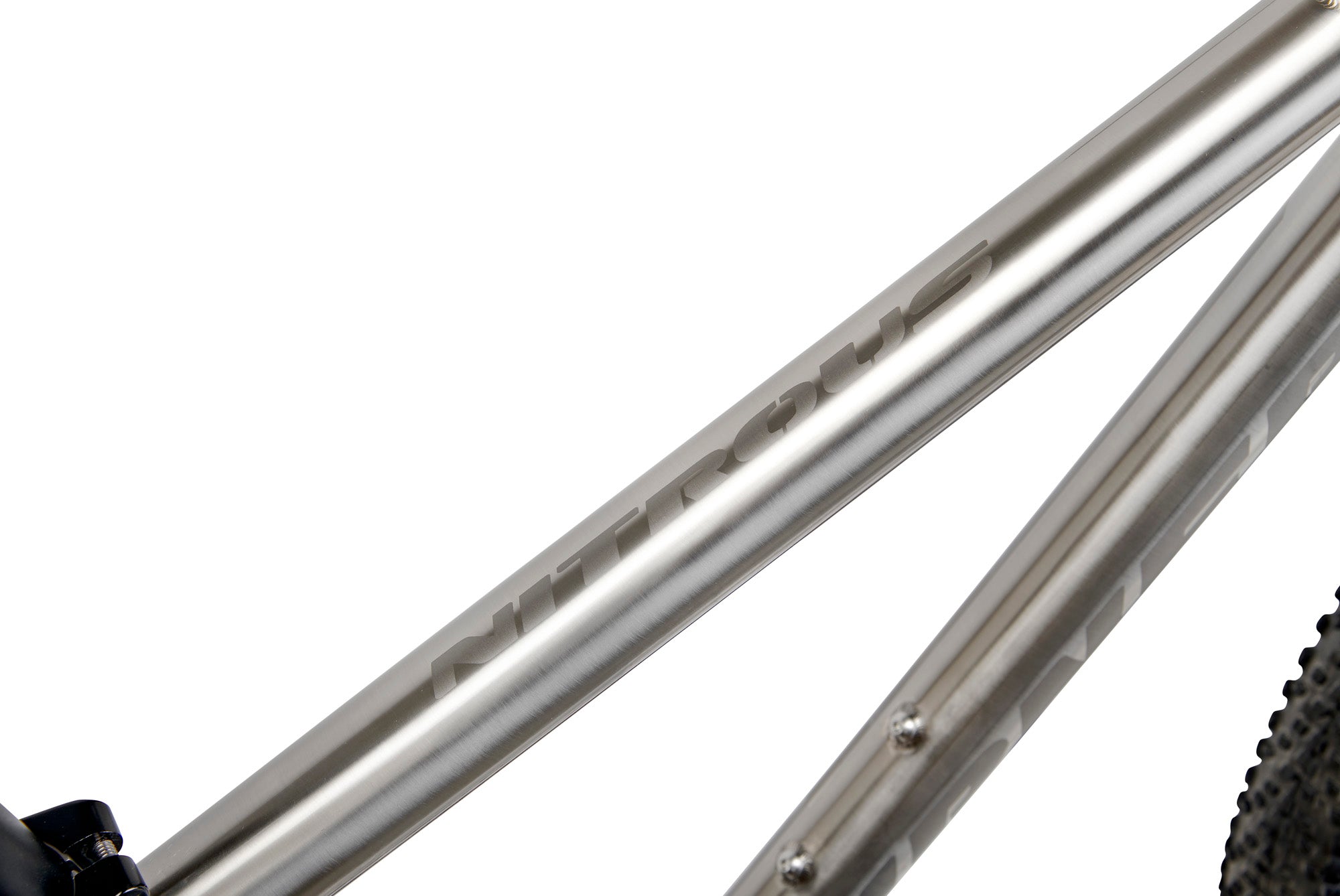

CUSTOM SHAPED TITANIUM TUBESET
Subtle shaping at the lower end of the Down Tube to the spread load over the BB shell and a dramatically flared Seat Tube both increase lateral rigidity for better feel when smashing the pedals. Along with the custom tapered chainstays, these subtle features set the Turner Ti ahead of the pack when it comes to ride tuning.
12mm Bolted AXLE
Bolts are stronger, stiffer, and simpler. Which is exactly why all our bikes come with them, it simply makes sense.
DESIGNED IN THE USA

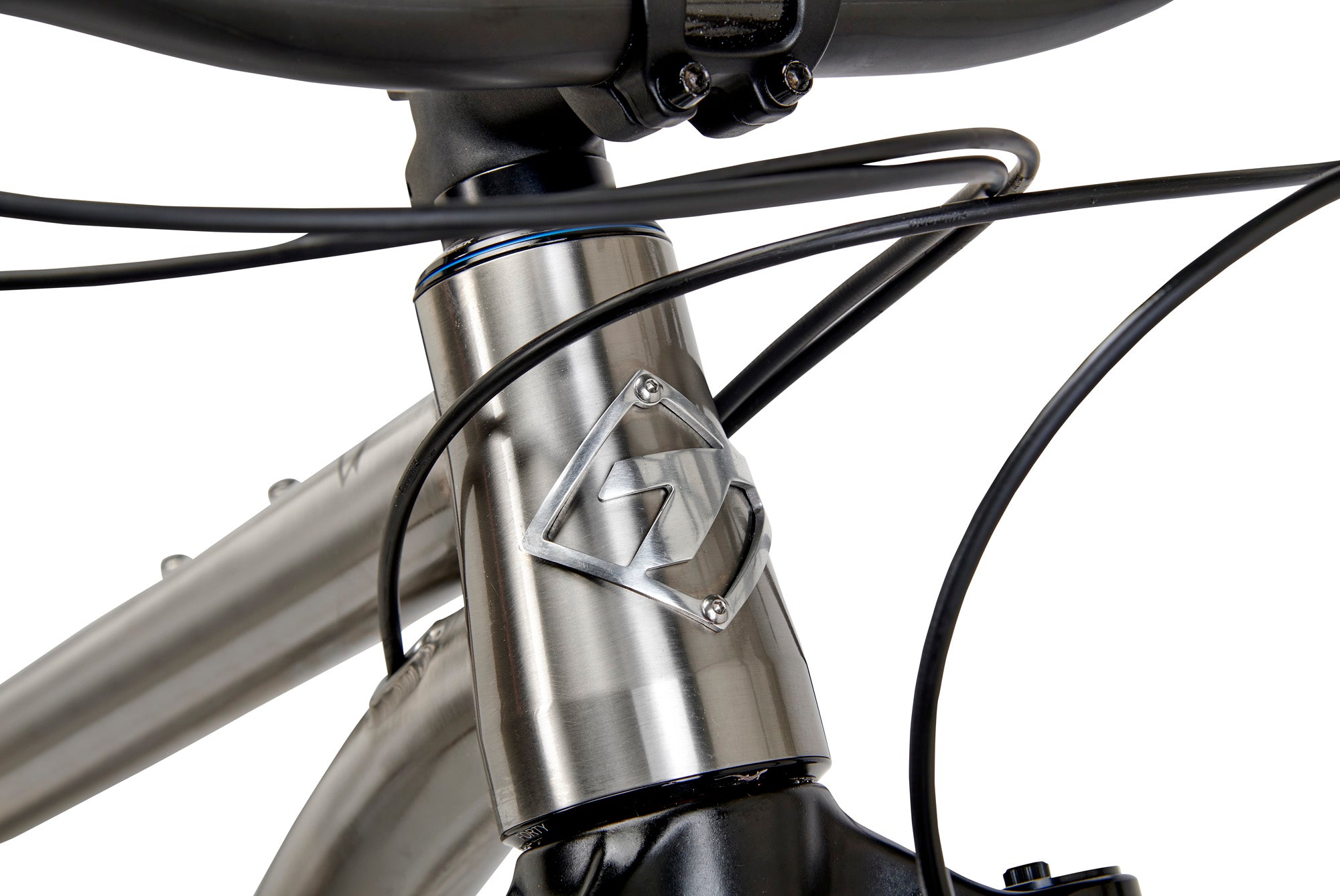

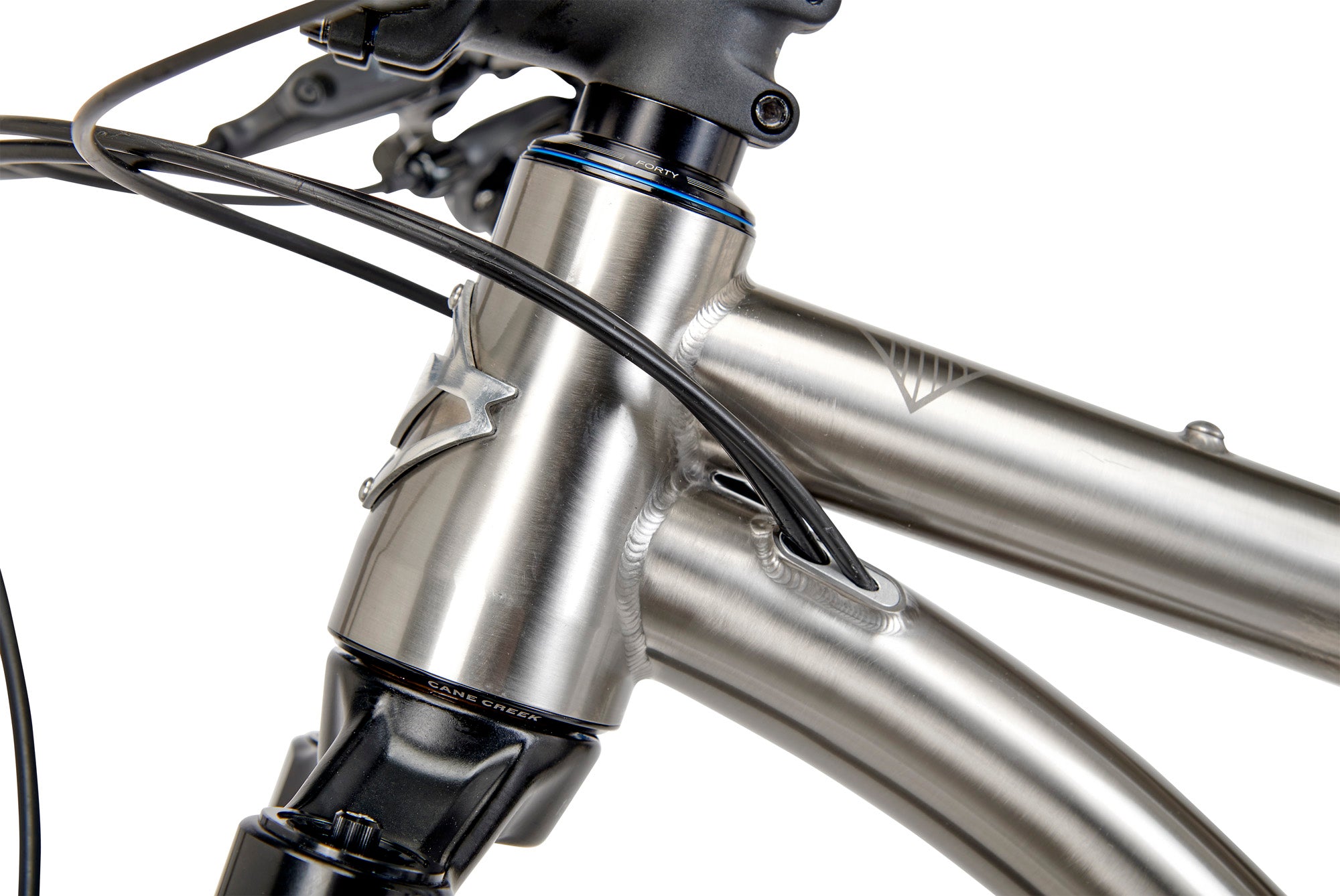

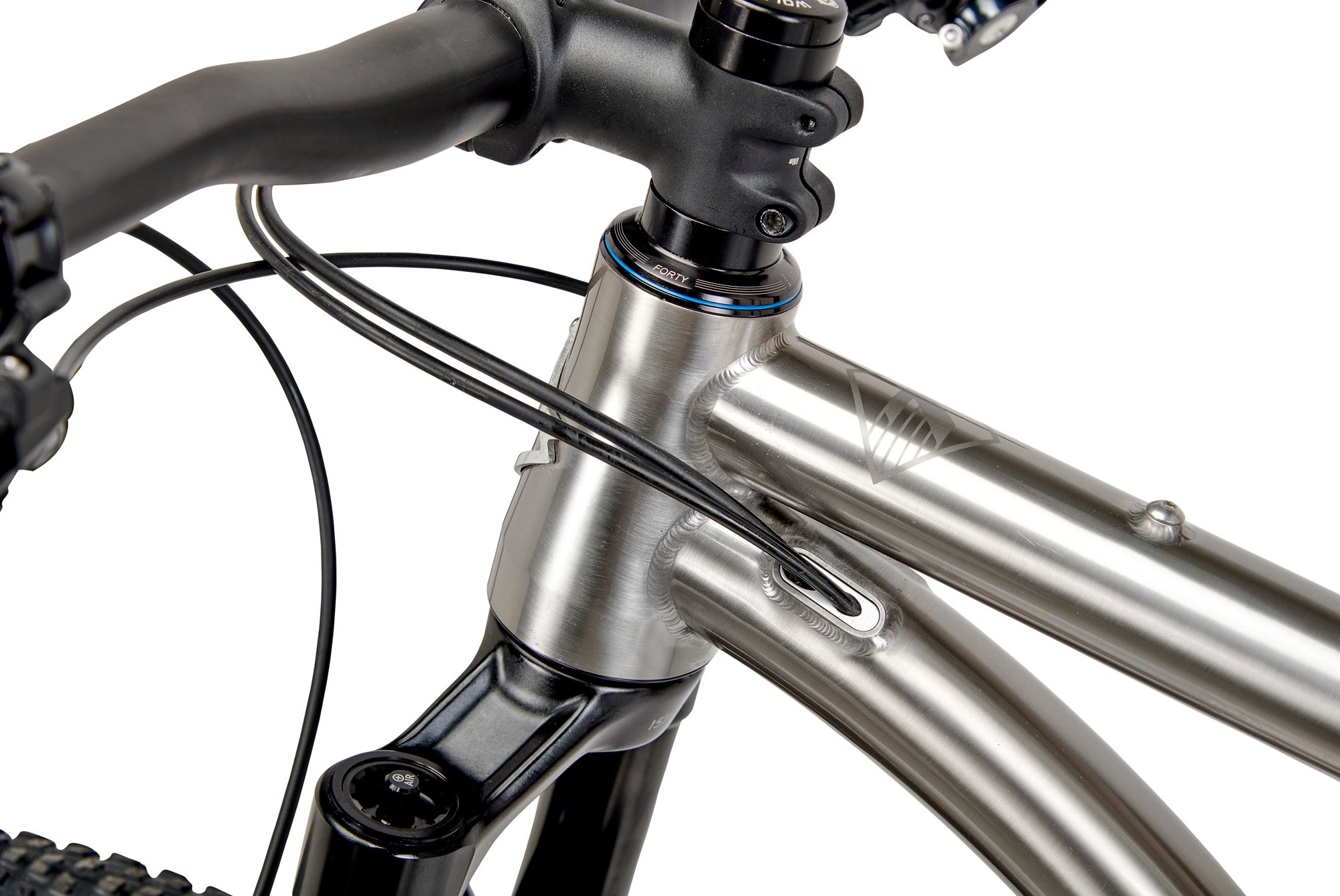

Every aspect of this Turner Ti frame is designed and engineered in the USA. From the gorgeous CNC tapered head tubes to the proprietary dropouts, we have designed every aspect of the frame.
As you probably figured out from the great price and long list of standard features, this frame is imported. We found this factory when we were producing the carbon Flux frames years ago. Soon after we started developing the first Ti Cyclosys with them. Our frames are not the first or the only Ti bicycle frames they build, as they are a factory long known for building world-class titanium mountain and road frames. What drew us to this factory was their ability to taper and create butted titanium tubing, and their massive CNC capabilities allowing us to create exactly what we wanted with out cookie cutter head tubes, bottom brackets and dropouts. Even our chainstay bridge is CNC out of billet to be super thin and not create a mud shelf!

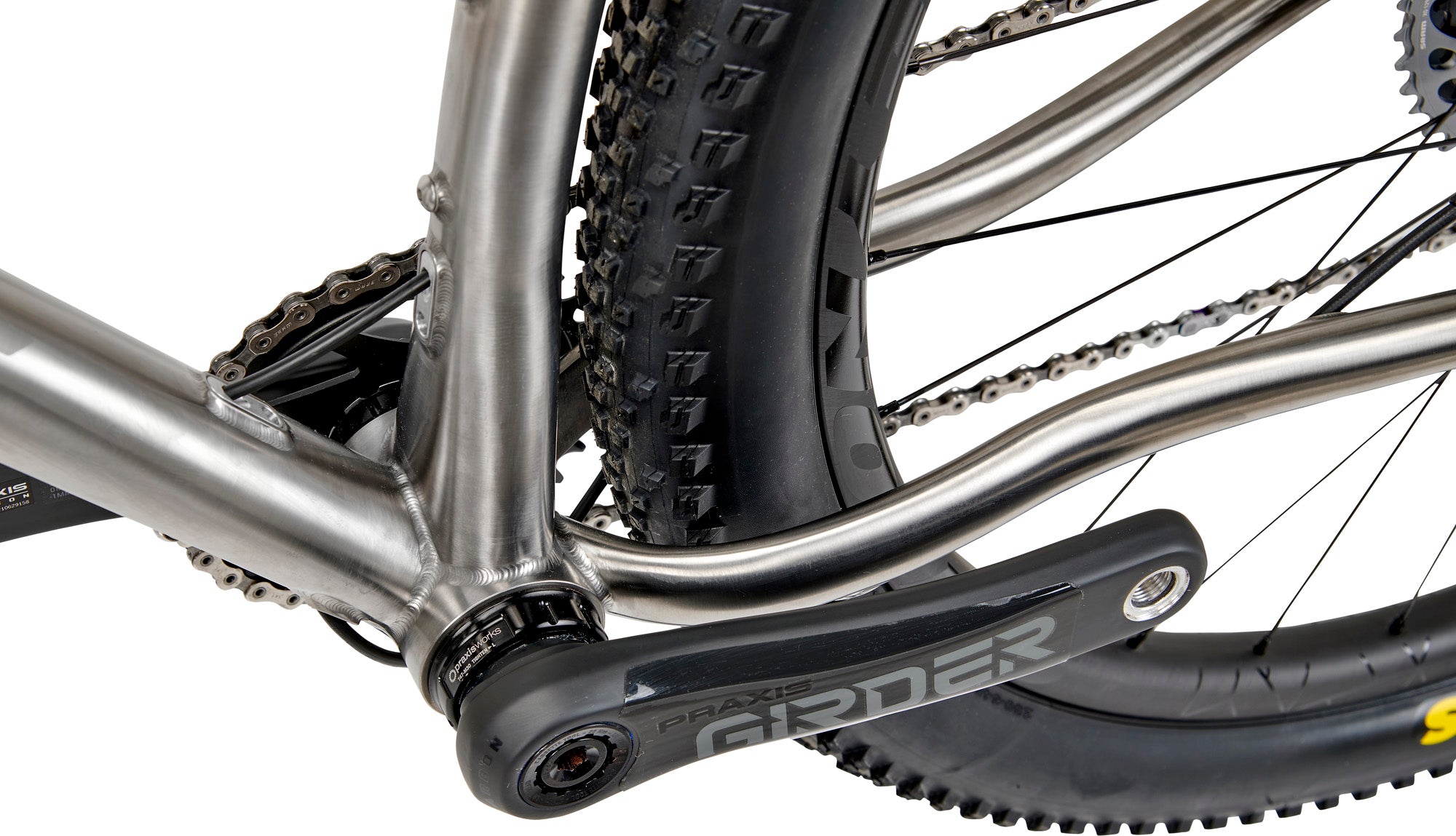

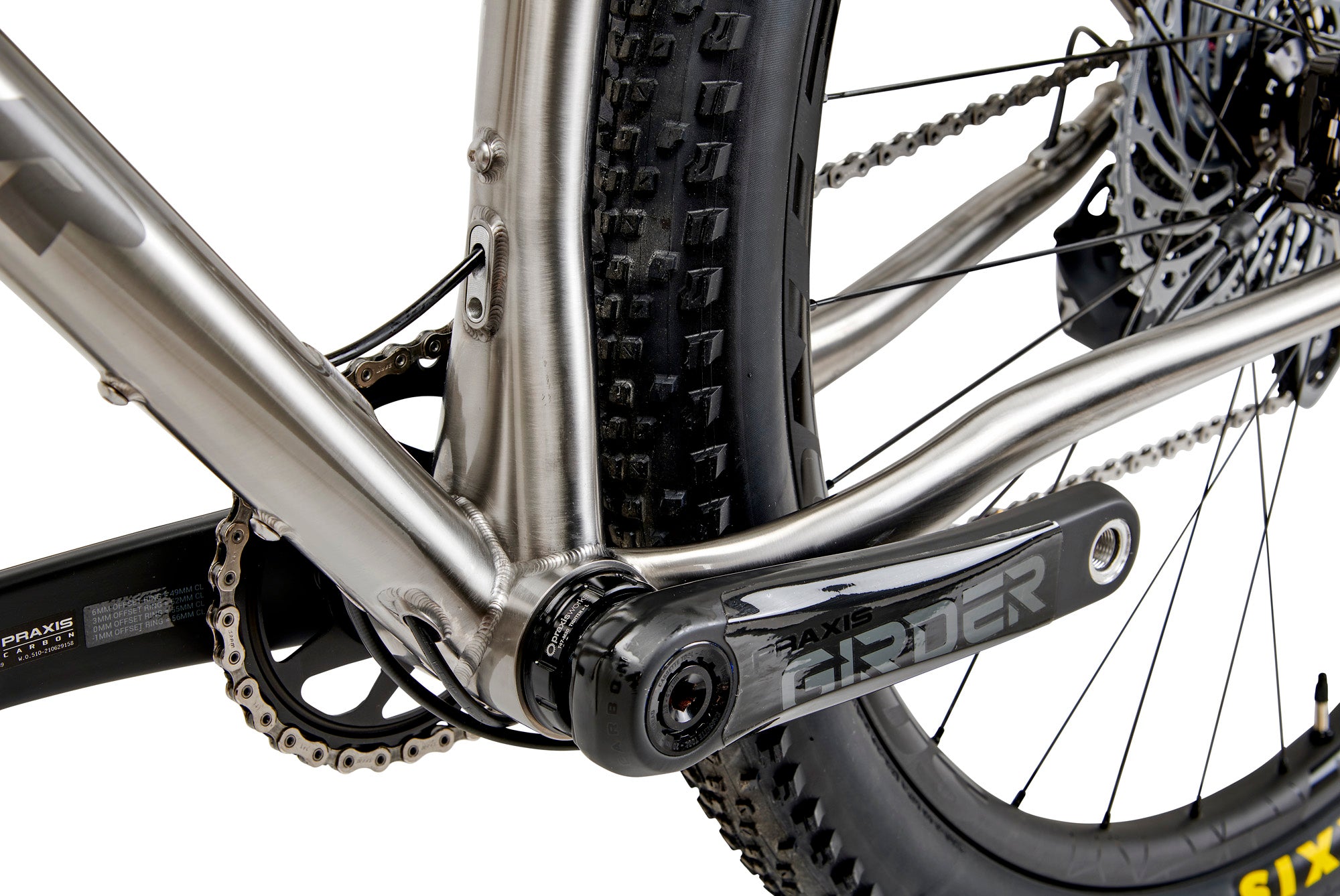

T47 BB
‘T’ stands for threaded! Due to popular demand threads are back, and the new T47 offers bigger bearings & longer service life than older threaded standards. It will easily fit the larger and 30mm aluminum spindle creating a stiffer crank assembly, which is up to 18% lighter than the traditional steel spindle system.
Specifications subject to change without notice.
Lifetime Warranty
Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase.This warranty does not cover normal wear and tear, nor does it apply to damage that is the result of abuse, improper assembly, poor maintenance, alteration or use other than intended. The costs of disassembly, shipping, reassembly or repair of any attached components are not covered by this warranty and are the responsibility of the original owner.
This warranty is void in its entirety by any modification of the frame, fork, or components. This warranty is expressly limited to the repair or replacement of a defective item, and said repair or replacement is the sole remedy of the warranty. This warranty is offered only to the original owner, and is not transferable. Turner Bicycles Inc is not responsible for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase.
Turner Bikes crash replacement program
Sometimes accidents happen and you may need to replace a non-warranty damaged frame. We know how much you love your Turner Bike and understand the burden of having to replace a non-warranty damaged bike frame or part, Turner Bikes will make replacement parts available at a minimum charge to the original owner. Turner Bikes does this at its sole discretion and reserves the right to refuse this offer.
Our customer service rocks and our bikes ride like no other, but in the end, we want it to fit you. If you cannot get comfortable on your new Turner Bike within 5 days of receiving it, give us a call and we will work out a solution, you may only need a different stem, or length of seat post. If that won't work, a different size frame can be swapped out.
Press
"Turner Goes All Ti - Nitrous Titanium hardtail adds another metal bike to the lineup" - BikeRumor
- Description
- Geometry
- Frame Spec
- Features
- Press
Nitrous
Demo bike, 1 large at this price: Never ridden, just shown at events this year. A little dusty, not quite show room with some minor transport rash, but new and perfect in every way it needs to be.
As great as everyone says the Nitrous is, we could not leave it completely unchanged, so, new for 2024 is a 3D printed chain stay 1/2 yoke, with massive 2.6" tire clearance and room for a 38t round chainring. We also created custom 3D printed cable routing ports that are sleeker and smoother and designed to make it easier to run the internal control lines. There was no change to geometry or tube spec, we would not want to mess with perfection!
The Nitrous has UDH, which allows you to use the newest SRAM 'Transmission' rear derailleur. And each frame is shipped with a Universal Derailleur Hanger so any derailleur from the last 4 decades can be installed and with the multiport cable routing options you can choose electric or mechanical shifting and internally routed dropper post.
Why was the Nitrous created? For fast cross country type rides, but with a fully modern geometry. There is no reason that a XC / light trail bike designed to really be pedaled in anger should have angles from 20 years ago, of course longer, lower, slacker works better than the old geometry on light bikes too!
Why a hard tail?? For many of us, there is a ton of riding that does not require a full suspension bike, and with trail sanitation happening daily, more and more trails are becoming more fun on a hardtail!
| S | M | L | XL | |
| rec'd height | 5'1"-5'6'' | 5'6''-5'10'' | 5'10''-6'2'' | 6'2''-6'6'' |
| effective TT | 585 | 615 | 640 | 670 |
| seat tube | 370 | 400 | 430 | 470 |
| seat tube angle real | 75° | 74.5° | 74.5° | 74° |
| head tube | 85 | 100 | 125 | 155 |
| head-angle | 66° | 66° | 66° | 66° |
| bb drop | 62 | 62 | 60 | 60 |
| chainstay | 435 | 435 | 440 | 445 |
| reach | 420 | 443 | 462 | 478 |
| stack | 610 | 623 | 644 | 672 |
| wheelbase | 1140 | 1166 | 1200 | 1233 |
| standover@mid | 760 | 775 | 805 | 835 |
| Max post insert | 250 | 210 | 240 | 280 |
| { All specifications are subject to change. Measurements are given in ‘Millimeters’ and ‘Grams’ unless otherwise noted. } | ||||
Frame Spec
| Seat Post Diameter | 30.9mm | |
| Headset Dimensions | ZS 44/56 semi integrated | |
| BB Shell | T47 Threaded | |
| Fork Length | 120-140max | (Geo based on 120 fork) |
| POST mount rear brake | 180 max | |
| Max Tire Clearance | 29'' x 2.5'' or 27.5'' x 2.8'' | With full clearance |
| Max Boost chainring size: | 36t oval 38t round |
SRAM GX 'Transmission' Build Kit
*Parts subject to change based on availability
| Fork | Manitou Mattoc Limited Edition 120mm 3 position compression on fork |
| drivetrain | SRAM GX 10-52, XO chain for long life |
| crankset | Praxis Girder XC, carbon, 175, 32t |
| brakes | SRAM Level Silver stealth, 4 Pistons, 180 ft 180 rr |
| wheelset | Reynolds 289/309 Black Label Expert, carbon rims, butted spokes |
| tires | Maxxis Rekon, 3T,EXO, tubeless ready, 29x2.4WT |
| sealant | Orange Seal Endurance |
| headset | Cane Creek 40 Series, 44/56 semi integrated, ZS top and bottom. |
| handlebar | Whisky No 9 carbon, 25mm rise |
| stem | Whisky No 7 MTN 50mm |
| seatpost | One UP dropper 210mm |
| saddle | WTB Volt |
| grips | ODI Reflex 2.1 lock on with custom Turner laser etched clamps |
CUSTOM SHAPED TITANIUM TUBESET
Subtle shaping at the lower end of the Down Tube to the spread load over the BB shell and a dramatically flared Seat Tube both increase lateral rigidity for better feel when smashing the pedals. Along with the custom tapered chainstays, these subtle features set the Turner Ti ahead of the pack when it comes to ride tuning.
12mm Bolted AXLE
Bolts are stronger, stiffer, and simpler. Which is exactly why all our bikes come with them, it simply makes sense.
DESIGNED IN THE USA
Every aspect of this Turner Ti frame is designed and engineered in the USA. From the gorgeous CNC tapered head tubes to the proprietary dropouts, we have designed every aspect of the frame.
As you probably figured out from the great price and long list of standard features, this frame is imported. We found this factory when we were producing the carbon Flux frames years ago. Soon after we started developing the first Ti Cyclosys with them. Our frames are not the first or the only Ti bicycle frames they build, as they are a factory long known for building world-class titanium mountain and road frames. What drew us to this factory was their ability to taper and create butted titanium tubing, and their massive CNC capabilities allowing us to create exactly what we wanted with out cookie cutter head tubes, bottom brackets and dropouts. Even our chainstay bridge is CNC out of billet to be super thin and not create a mud shelf!
T47 BB
‘T’ stands for threaded! Due to popular demand threads are back, and the new T47 offers bigger bearings & longer service life than older threaded standards. It will easily fit the larger and 30mm aluminum spindle creating a stiffer crank assembly, which is up to 18% lighter than the traditional steel spindle system.
Specifications subject to change without notice.
Lifetime Warranty
Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase.This warranty does not cover normal wear and tear, nor does it apply to damage that is the result of abuse, improper assembly, poor maintenance, alteration or use other than intended. The costs of disassembly, shipping, reassembly or repair of any attached components are not covered by this warranty and are the responsibility of the original owner.
This warranty is void in its entirety by any modification of the frame, fork, or components. This warranty is expressly limited to the repair or replacement of a defective item, and said repair or replacement is the sole remedy of the warranty. This warranty is offered only to the original owner, and is not transferable. Turner Bicycles Inc is not responsible for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. Proof of purchase is required, so save your original receipt to show model, serial # and date of purchase.
Turner Bikes crash replacement program
Sometimes accidents happen and you may need to replace a non-warranty damaged frame. We know how much you love your Turner Bike and understand the burden of having to replace a non-warranty damaged bike frame or part, Turner Bikes will make replacement parts available at a minimum charge to the original owner. Turner Bikes does this at its sole discretion and reserves the right to refuse this offer.
Our customer service rocks and our bikes ride like no other, but in the end, we want it to fit you. If you cannot get comfortable on your new Turner Bike within 5 days of receiving it, give us a call and we will work out a solution, you may only need a different stem, or length of seat post. If that won't work, a different size frame can be swapped out.
Customer Reviews

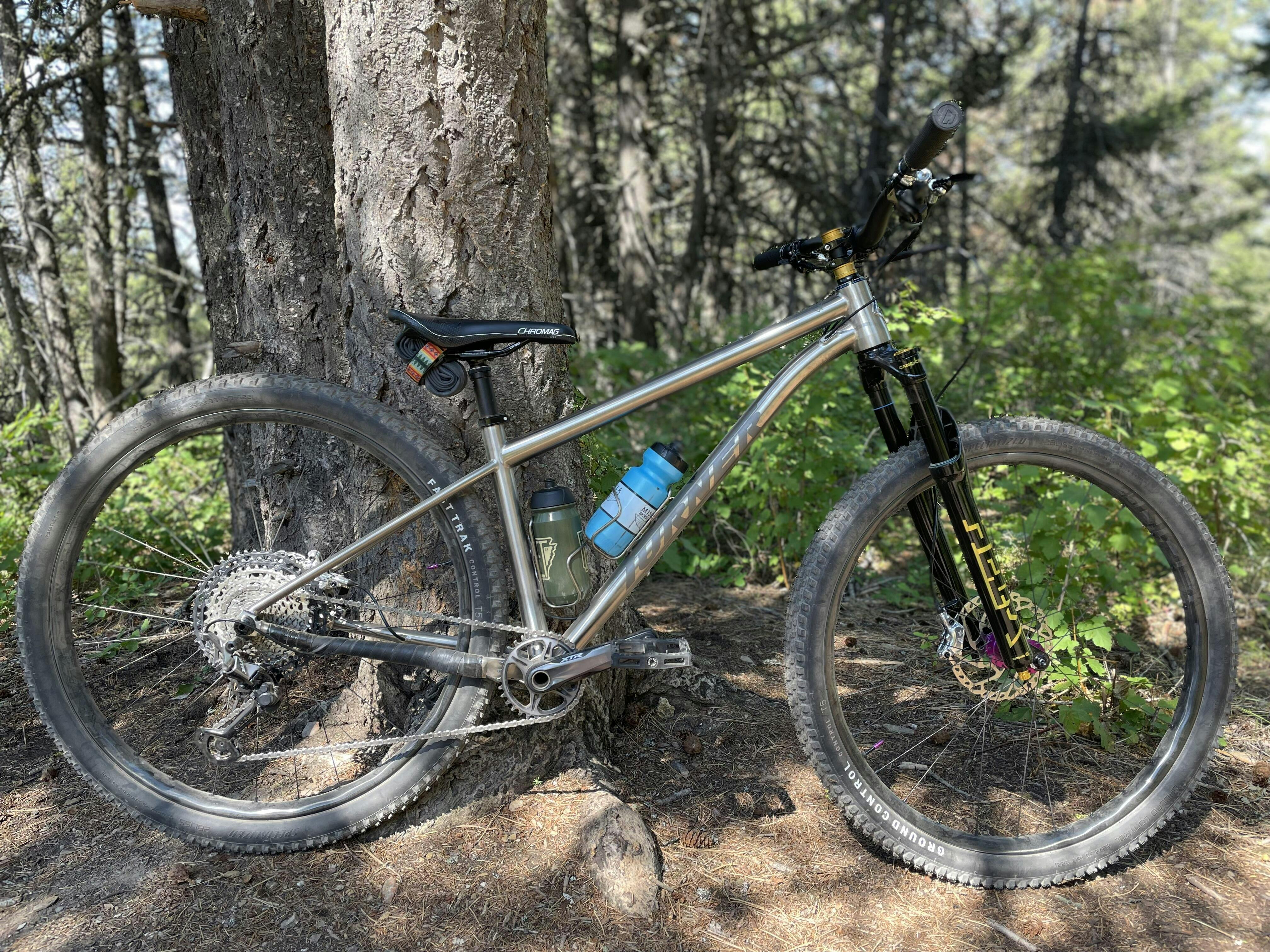

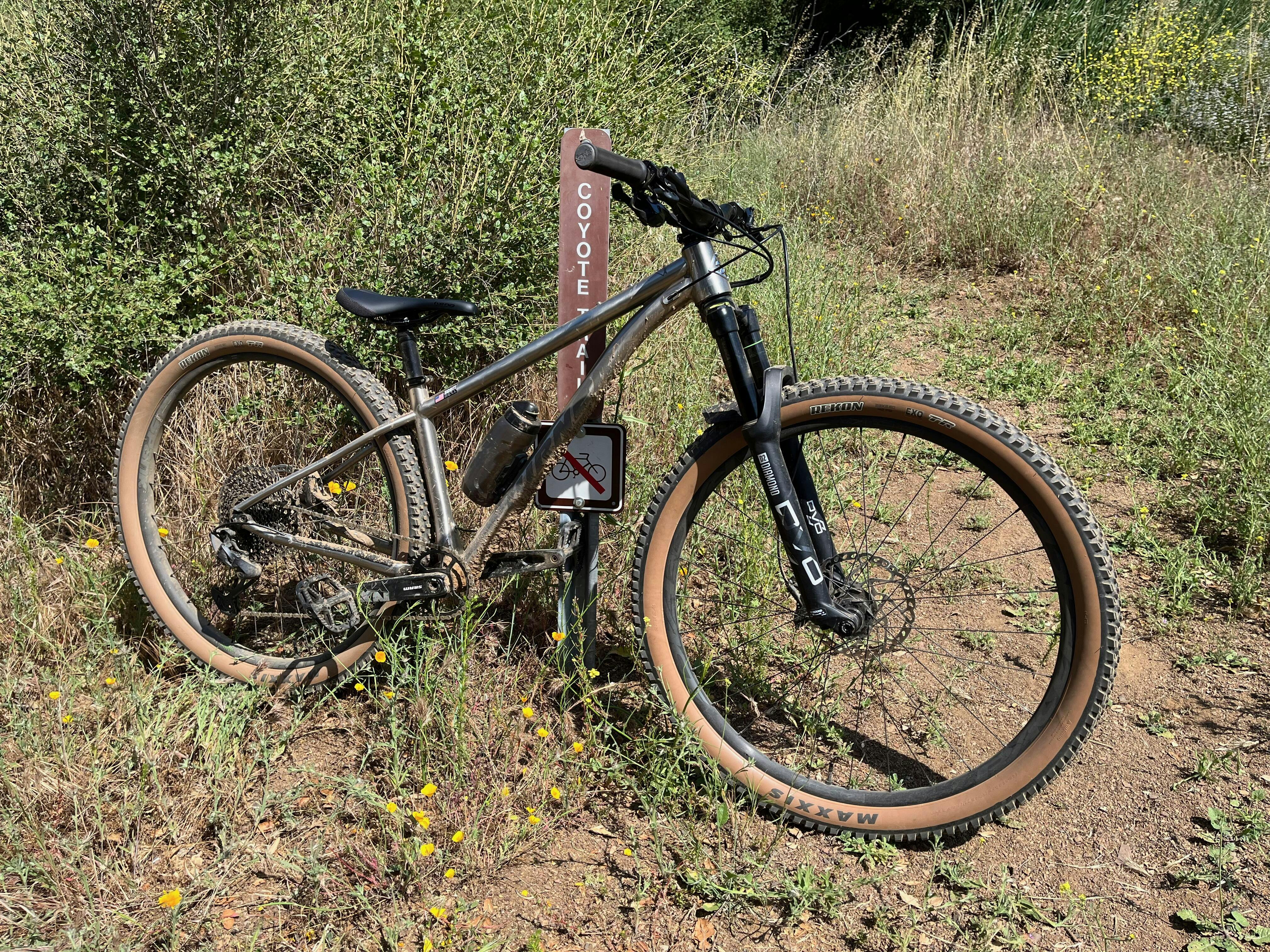

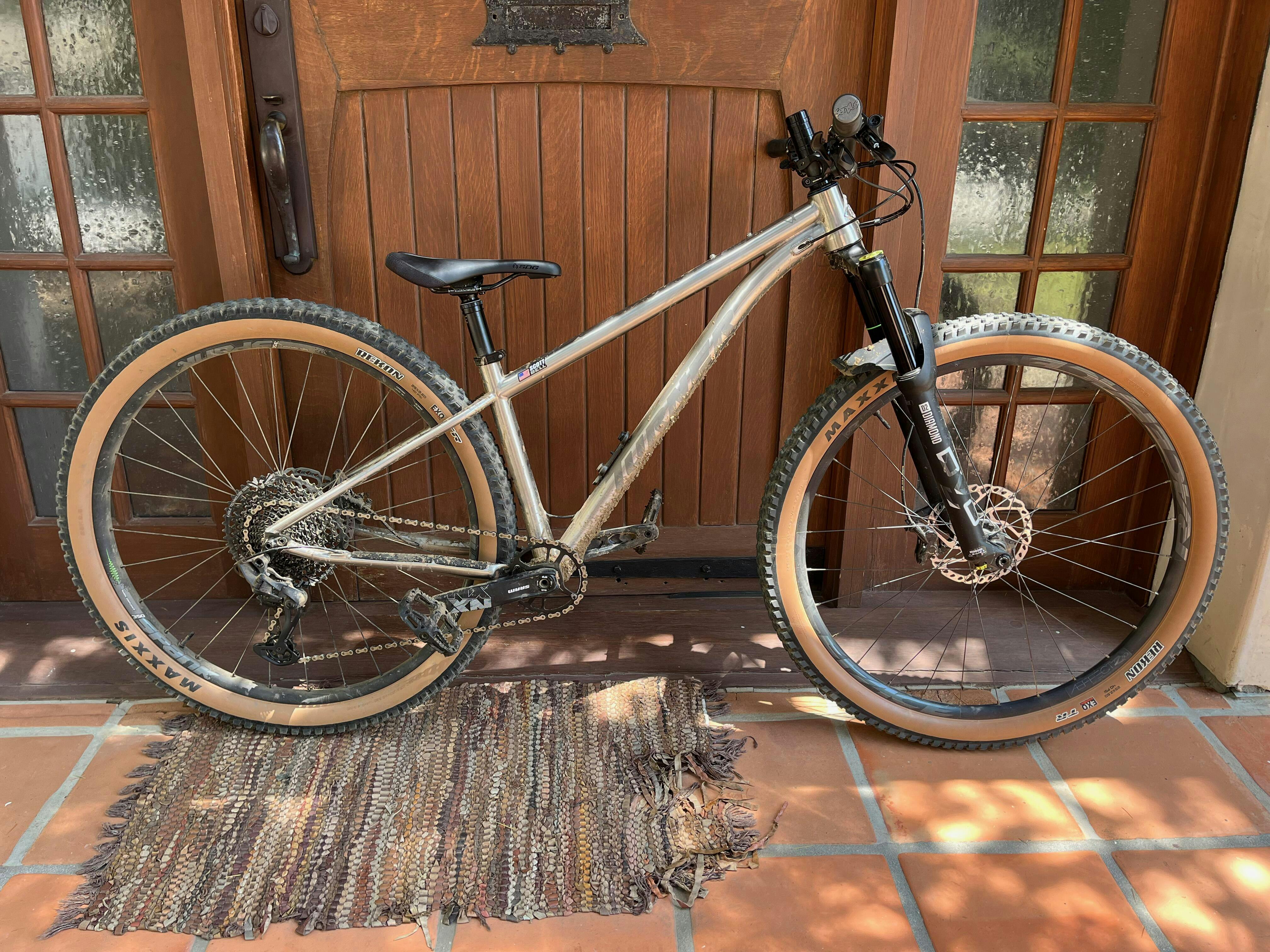

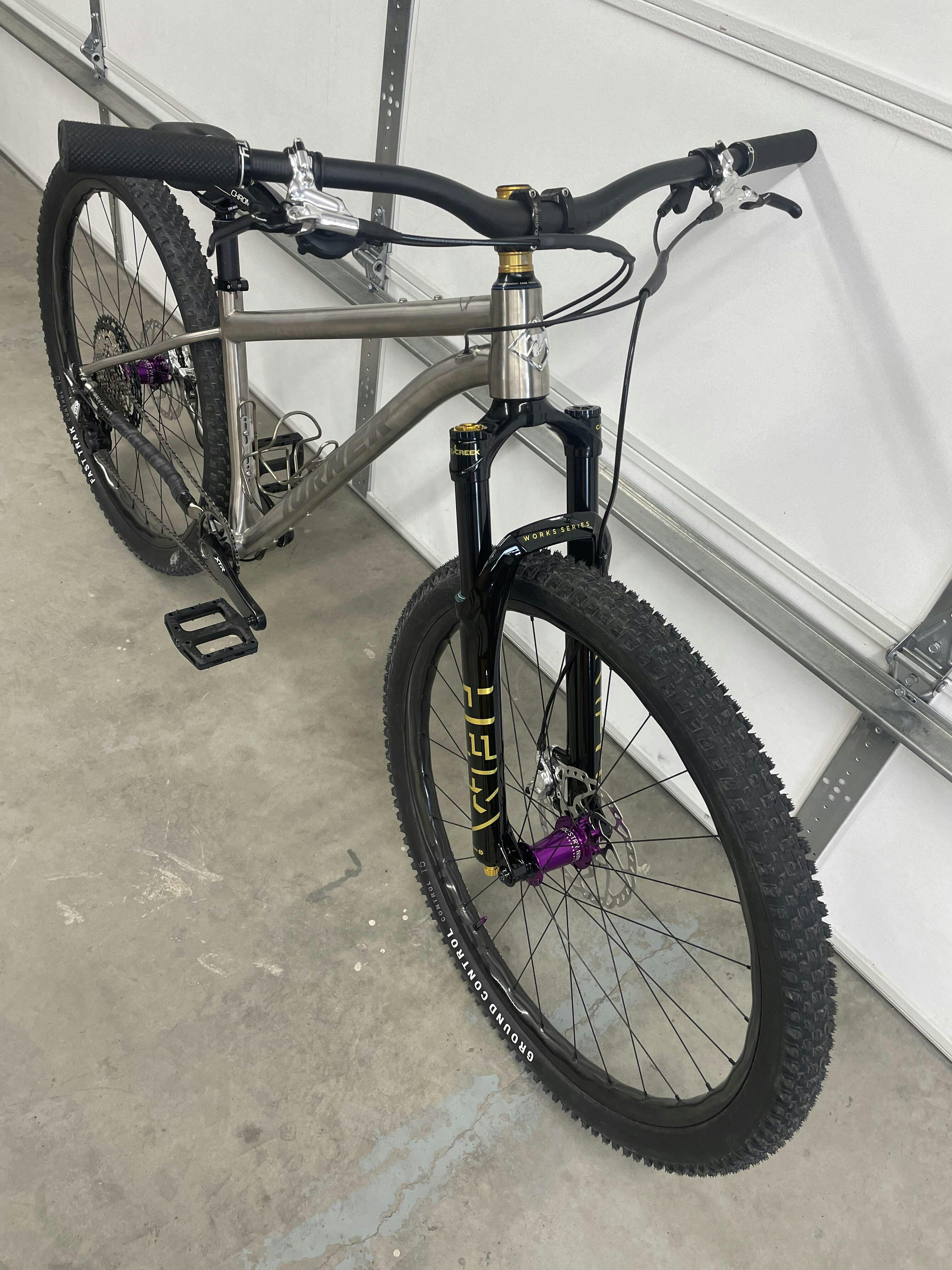

The bike rides like a dream. Geometry is spot on and UDH and T47 BB keep it up to date.
